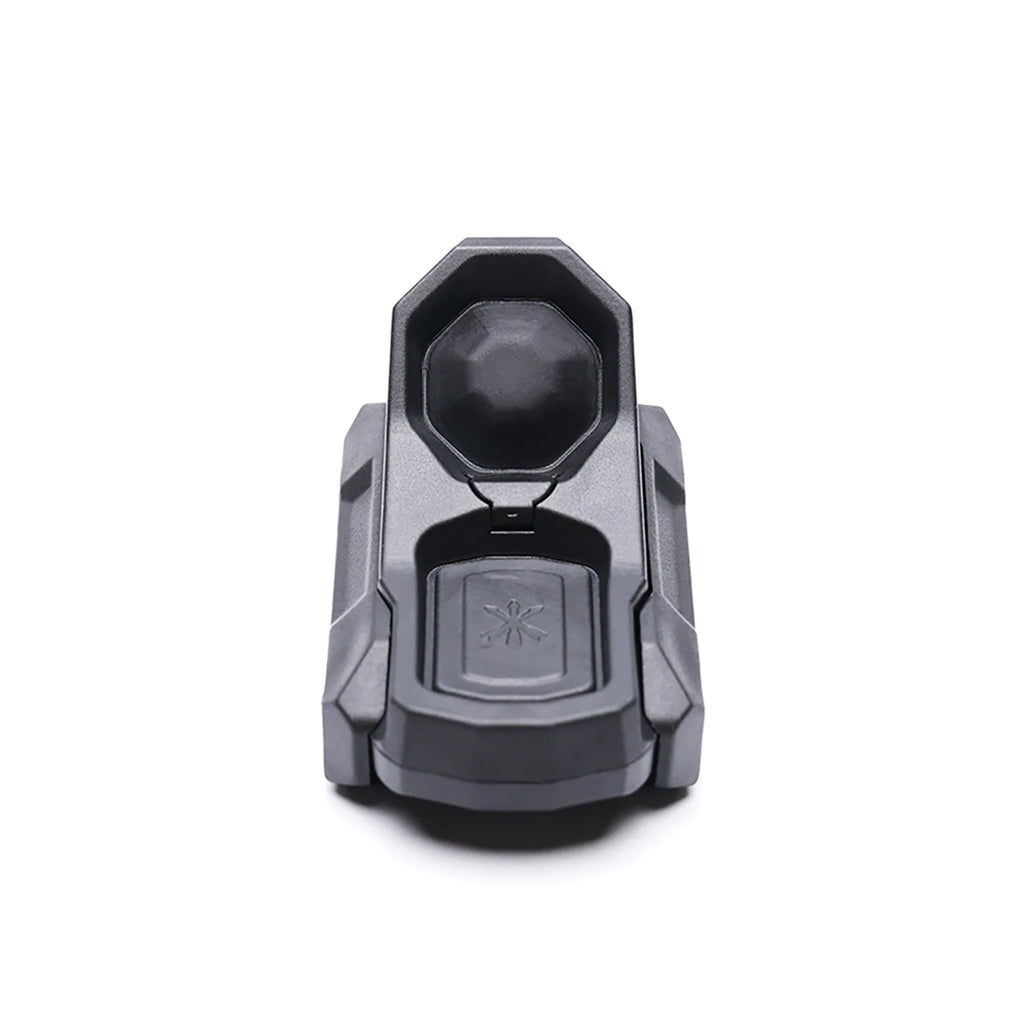

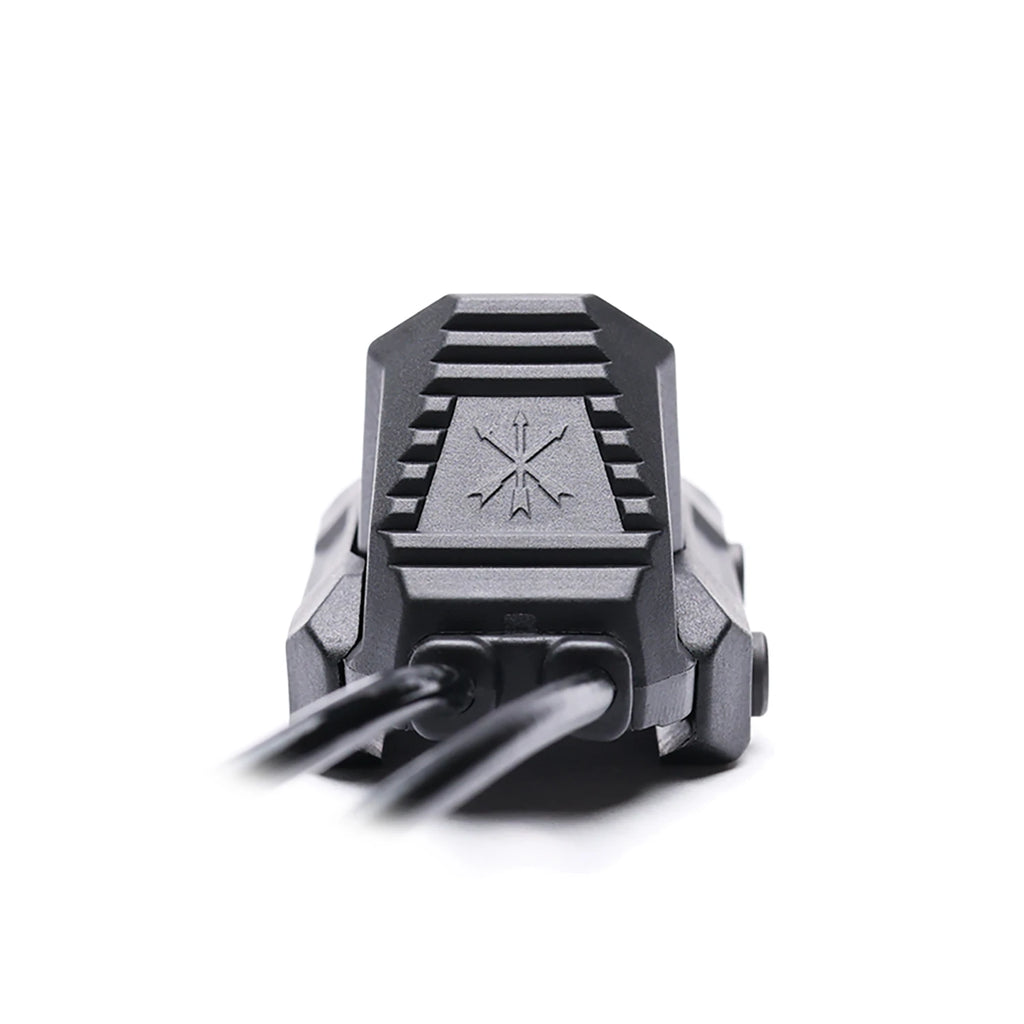

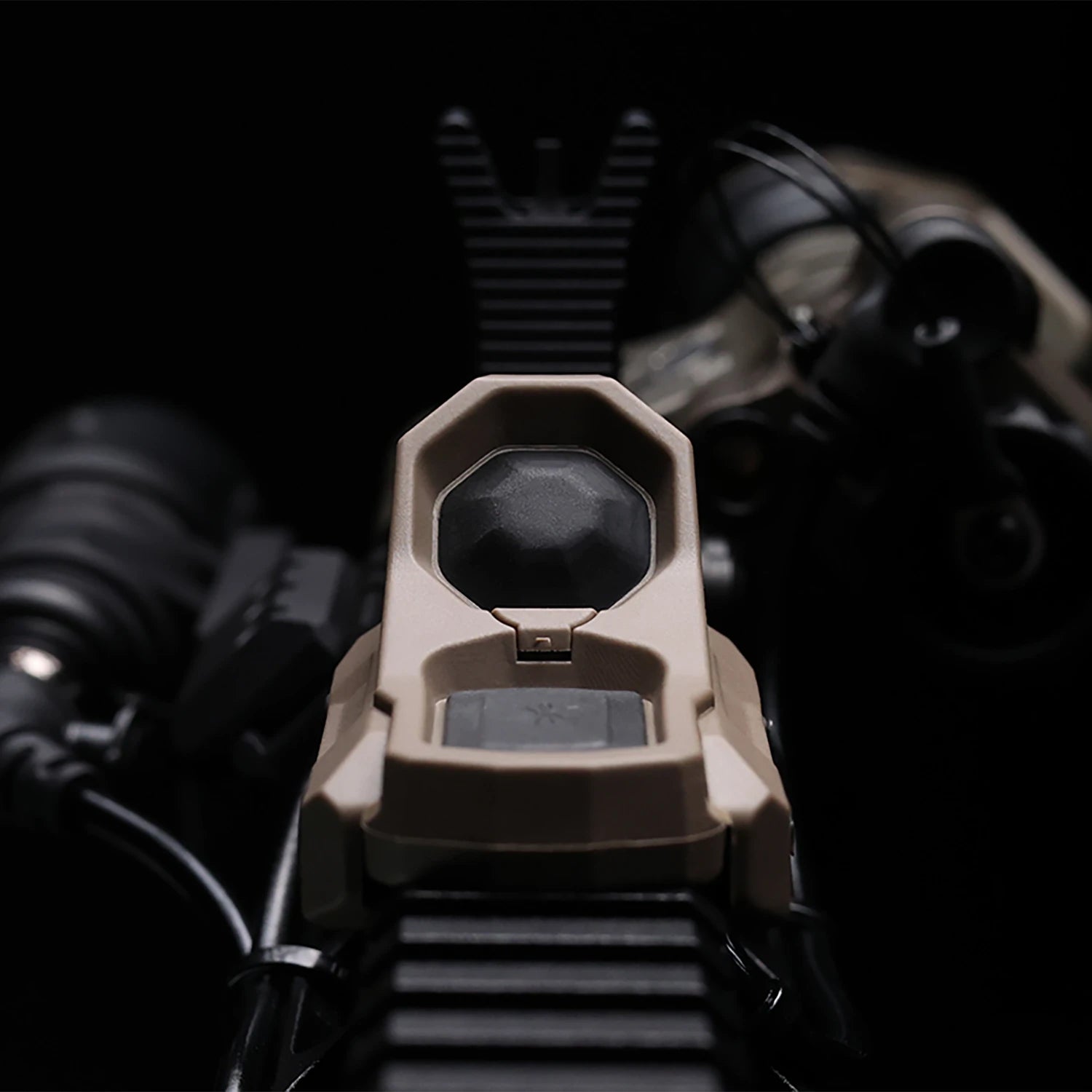

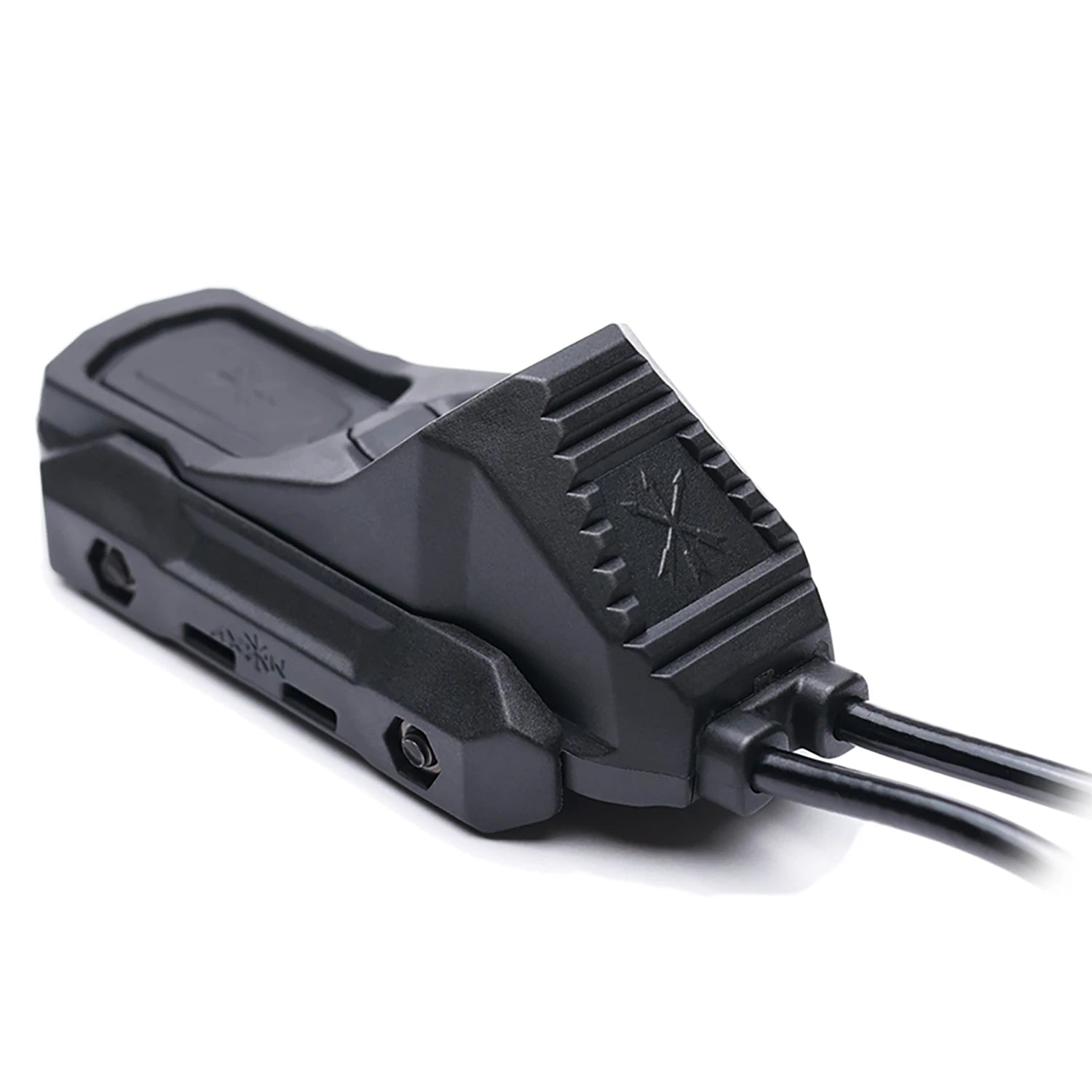

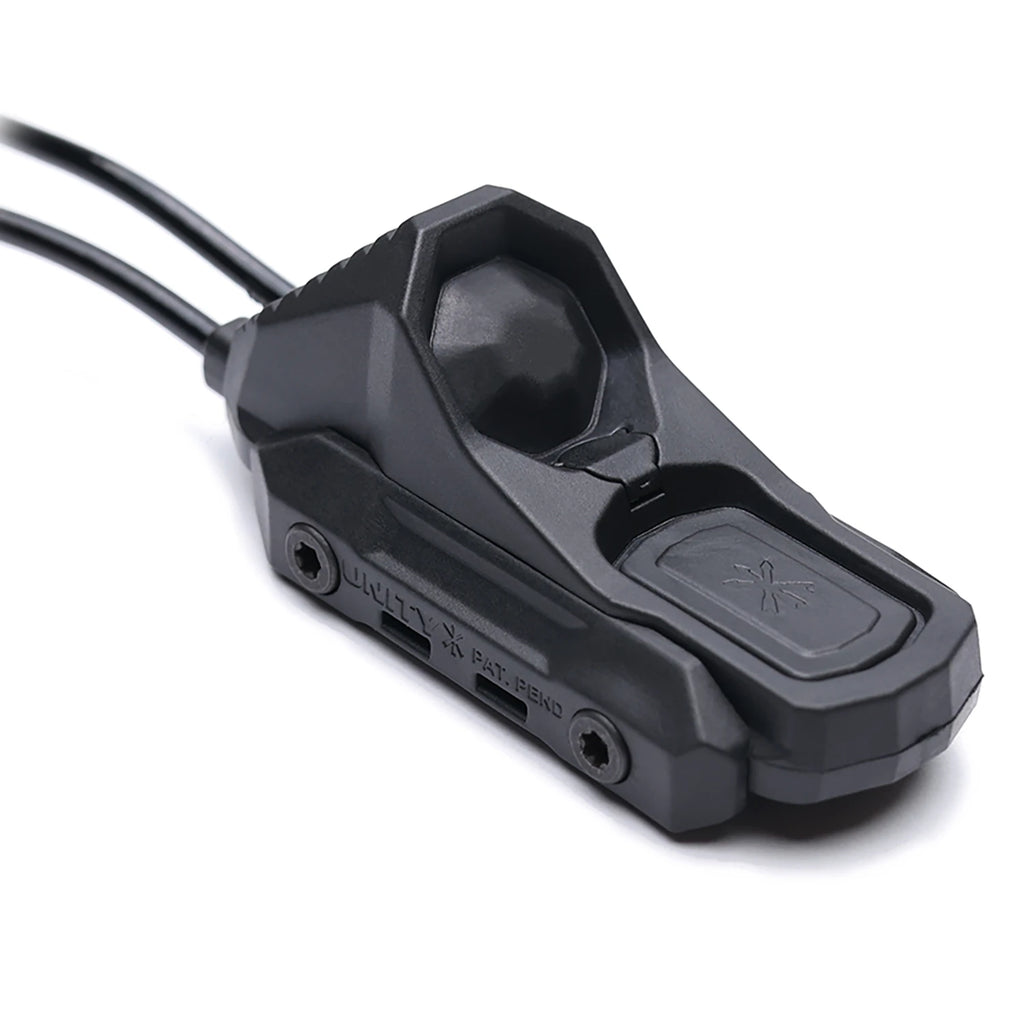

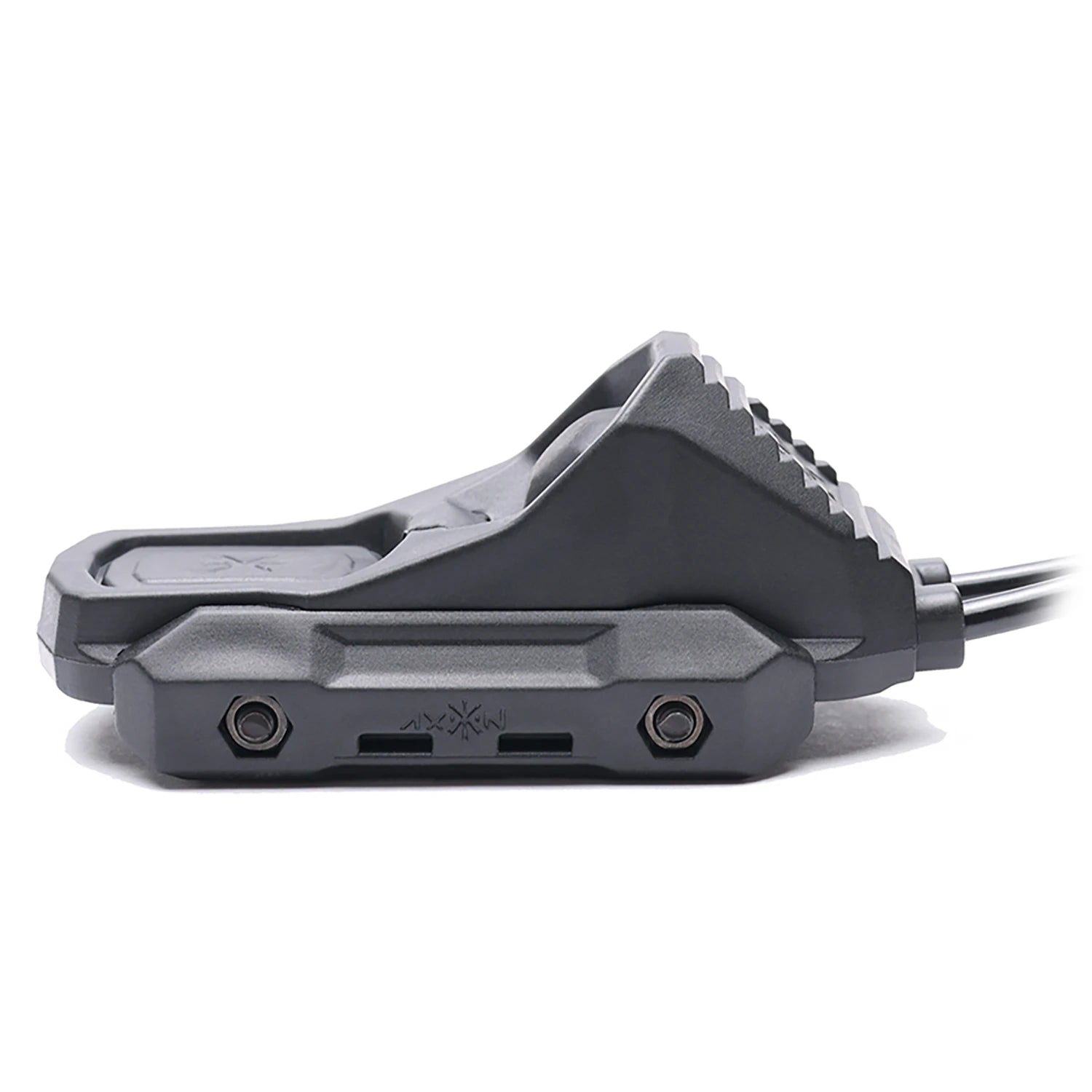

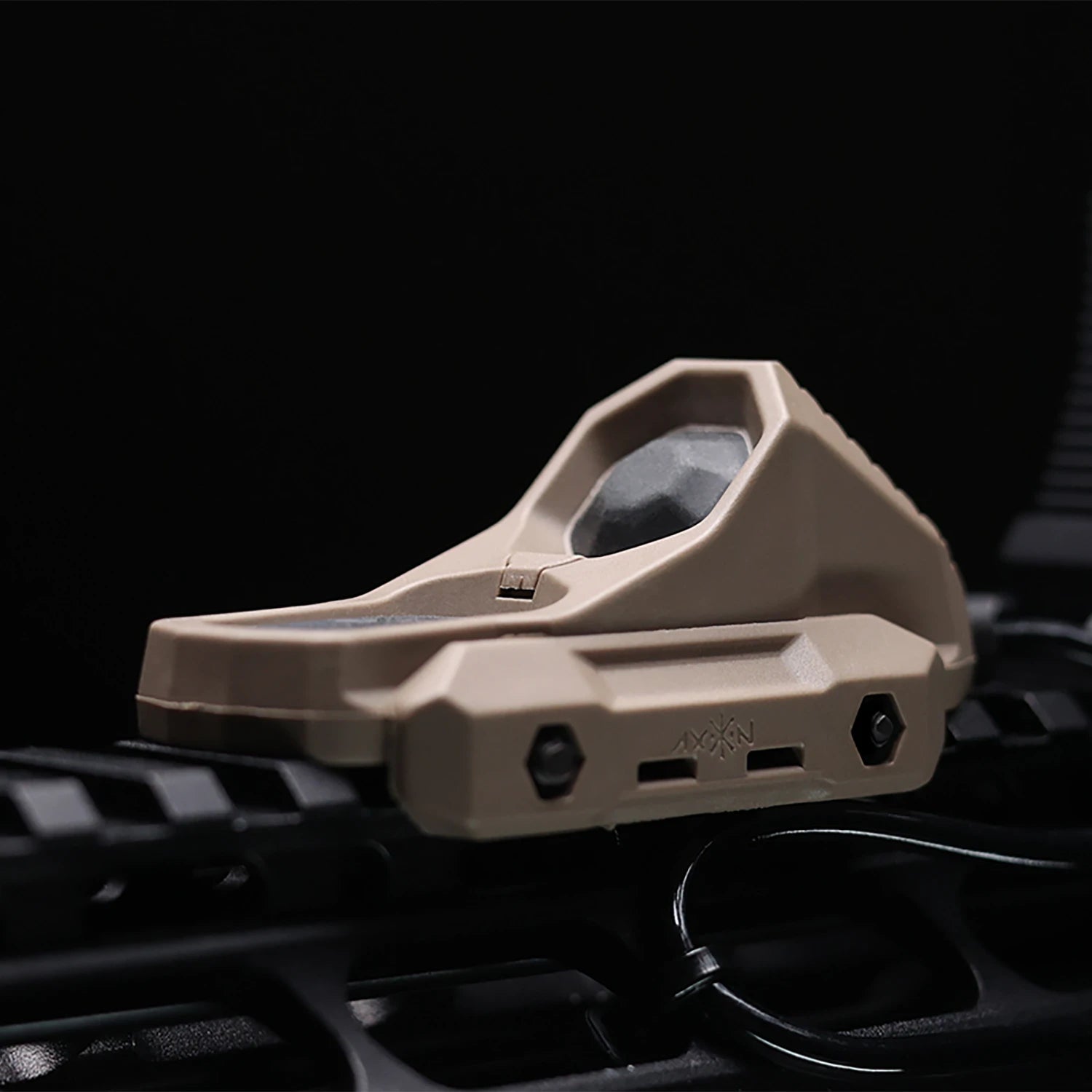

The pinnacle of remote switch design for weapon-mounted accessories, AXON™ provides complete control of lights and lasers in a single, compact and rugged housing. AXON is the direct result of operational feedback from professional end-users on our industry-leading switch technology. Lights and lasers can be fired from individual buttons with versions available for popular issued devices. Standard AXON™ models feature each button firing devices independently. SYNC models fire the laser independently (flat button), while the angled button will fire both light and laser simultaneously. NGAL variants operate in a SYNC capacity, but offer a visible override feature for light and laser. Standard configuration is 7” cable length.

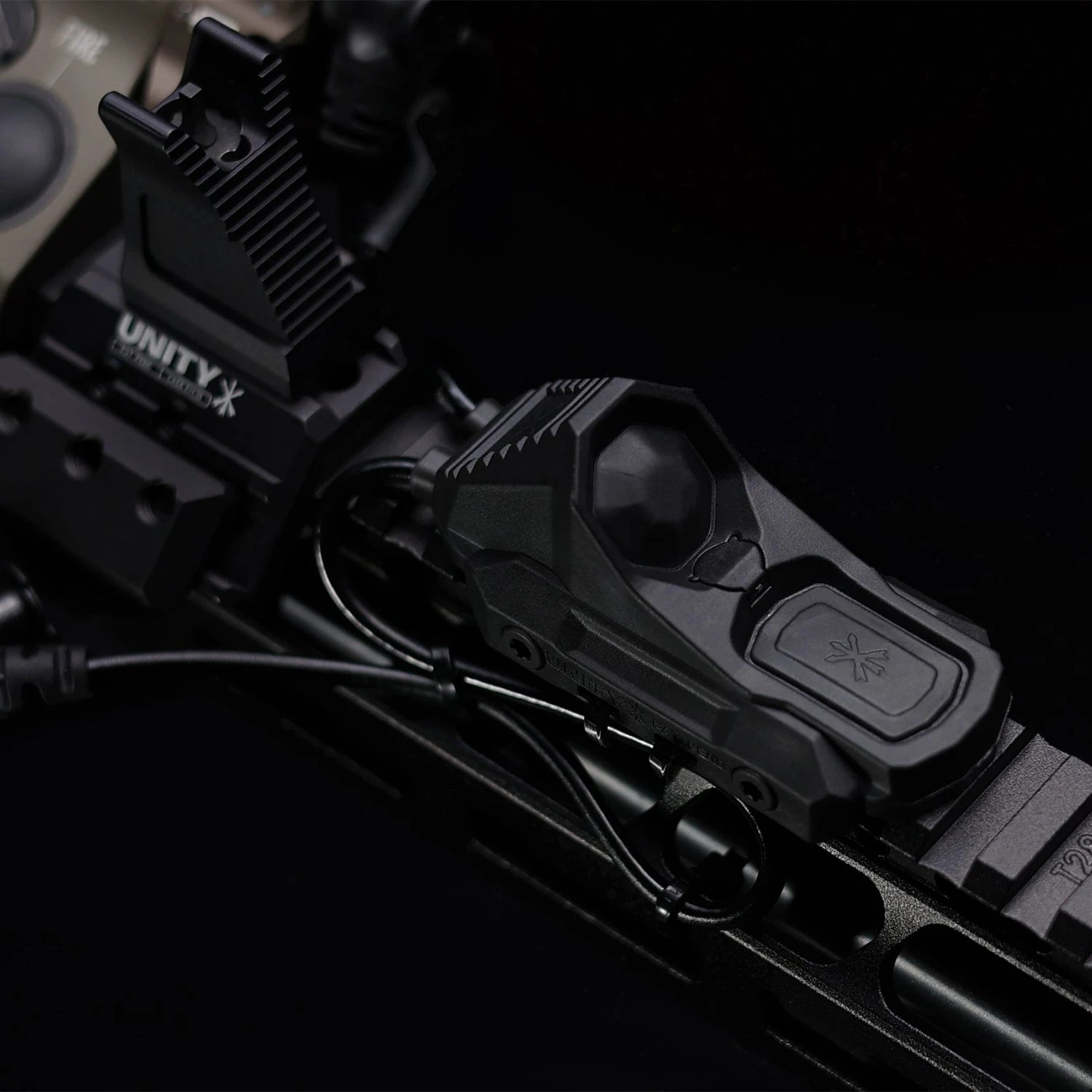

AXON mounts directly to M1913 Rail or M-LOK® (with optional M-LOK® Mounting Kit), while the Rail Clamps feature pass-throughs for zip ties. Its unique design provides tactile differentiation between the two buttons to eliminate confusion in dark, cold and high-stress situations. The light (angled) button features a switch that allows for both momentary and constant activation, while the laser (flat) button features a momentary-only button that supports the laser’s double-click-for-constant-on feature.
Guide to cables / leads:
Standard configurations are 7” or 4.5″ cable lengths. Custom lengths available upon request with Minimum Order Quantity.
Standard AXON™ models feature each button firing devices independently — light (angled) and laser (flat).
SYNC models fire the laser (flat) independently, while the light button (angled) will fire both light and laser simultaneously.
NGAL variants operate in a SYNC capacity, but offer a visible override feature for light and laser.
AXON™ for DBAL variants operate in a SYNC capacity, but allow for full functional use of the unique visible override feature on Steiner™ DBAL-A3 and A4 lasers. The Y-Splitter Crane-Spec Port lead plugs into the standard and visible override ports on the back of the laser.
The SureFire® light lead plugs into a SureFire® or Modlite® tail cap port. The LINK™ USB-C light lead plugs into GASCAP™.
Compatibility:
LINK™ USB-C System
SureFire®
Select Streamlight® Models (TLR® RM 1, TLR® RM 2, ProTac® Rail Mount HL-X Pro, ProTac® 2.0 Rail Mount, TLR-1® and TLR-2® when used with a remote switch tailcap)
NATO Crane-Spec Port / DBAL A3-A4 Laser
NGAL (LA-23/PEQ)
Other Variations Available upon Request with Minimum Order Quantity
Rail Mount:
MIL-STD M1913
M-LOK® (Separate AXON™ M-LOK® Mounting Kit Required)
Material:
High-Impact Polymer
Weight:
OZ: <1.7
G: <48.2
Dimensions (W X L X H):
IN: < 1.3 X 2.8 X 1.1
CM: < 3.3 X 7.1 X 2.8
Cable Length:Fire
7″
4.5″
4.5″ Light / 7″ Laser
Custom upon Request with Minimum Order Quantity
