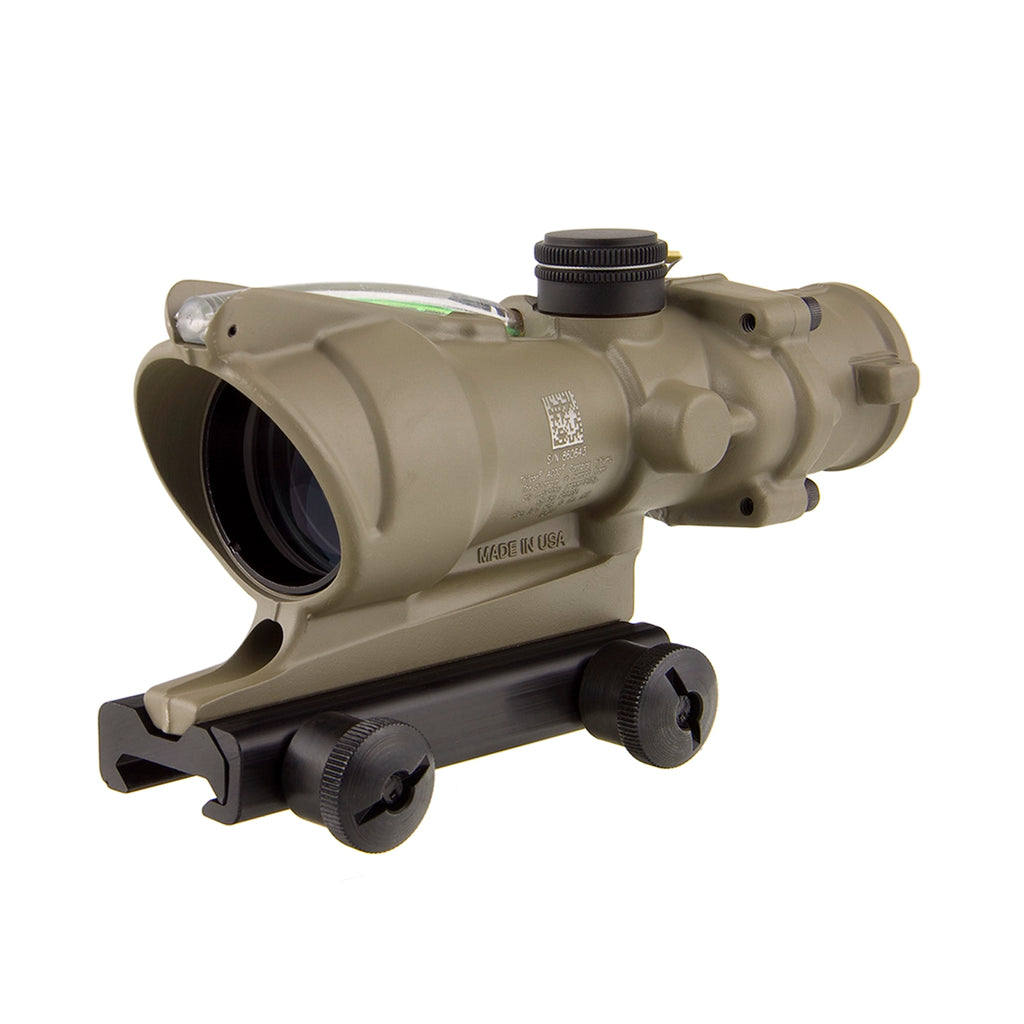

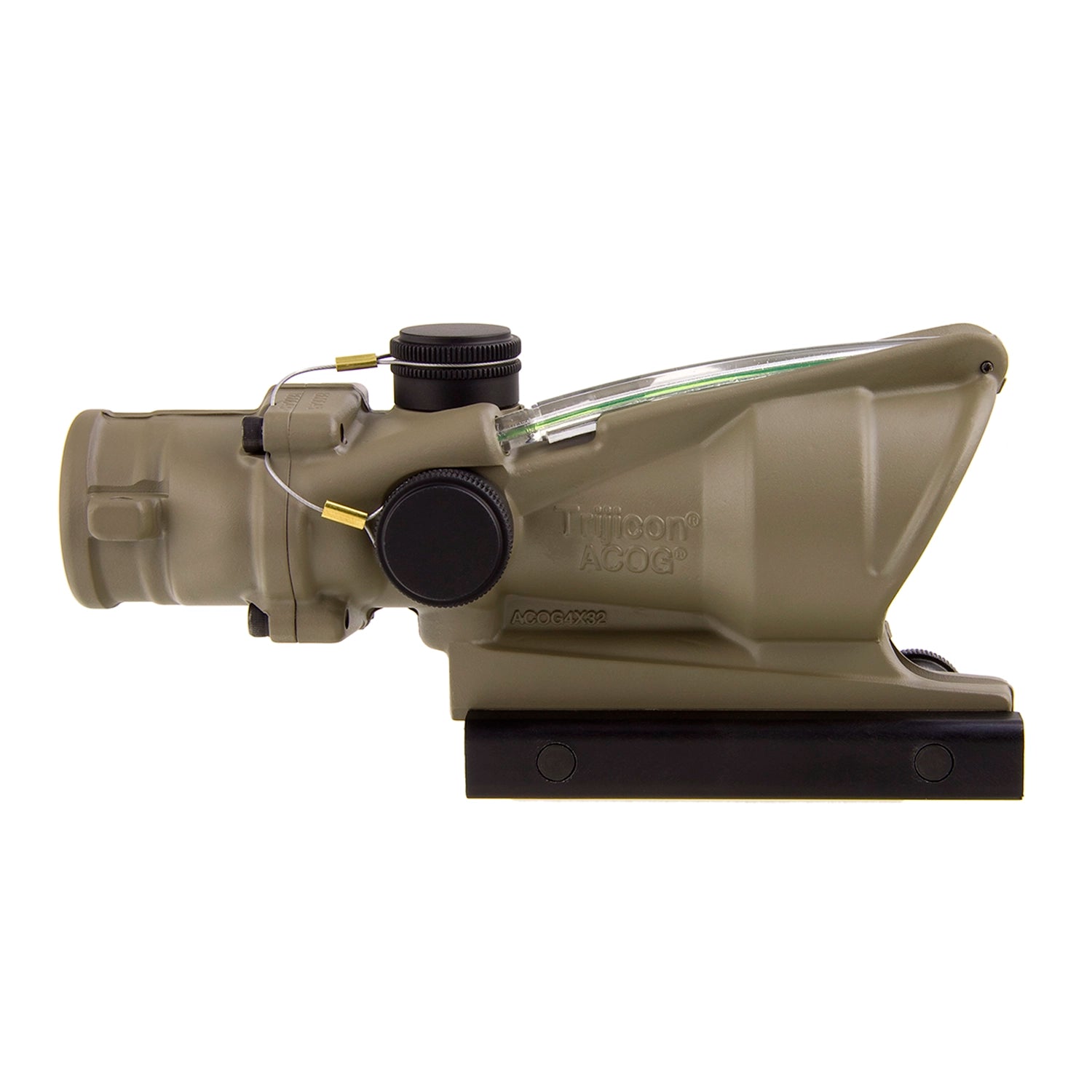

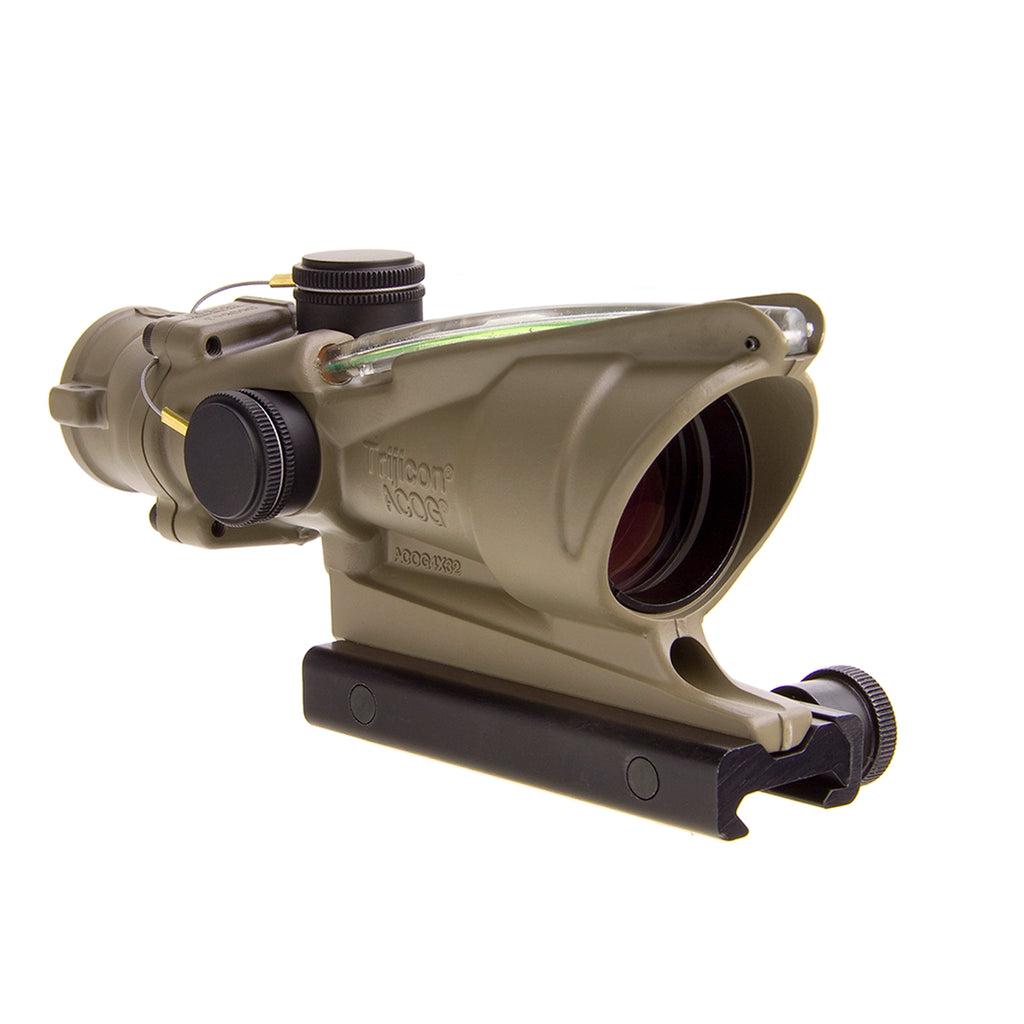

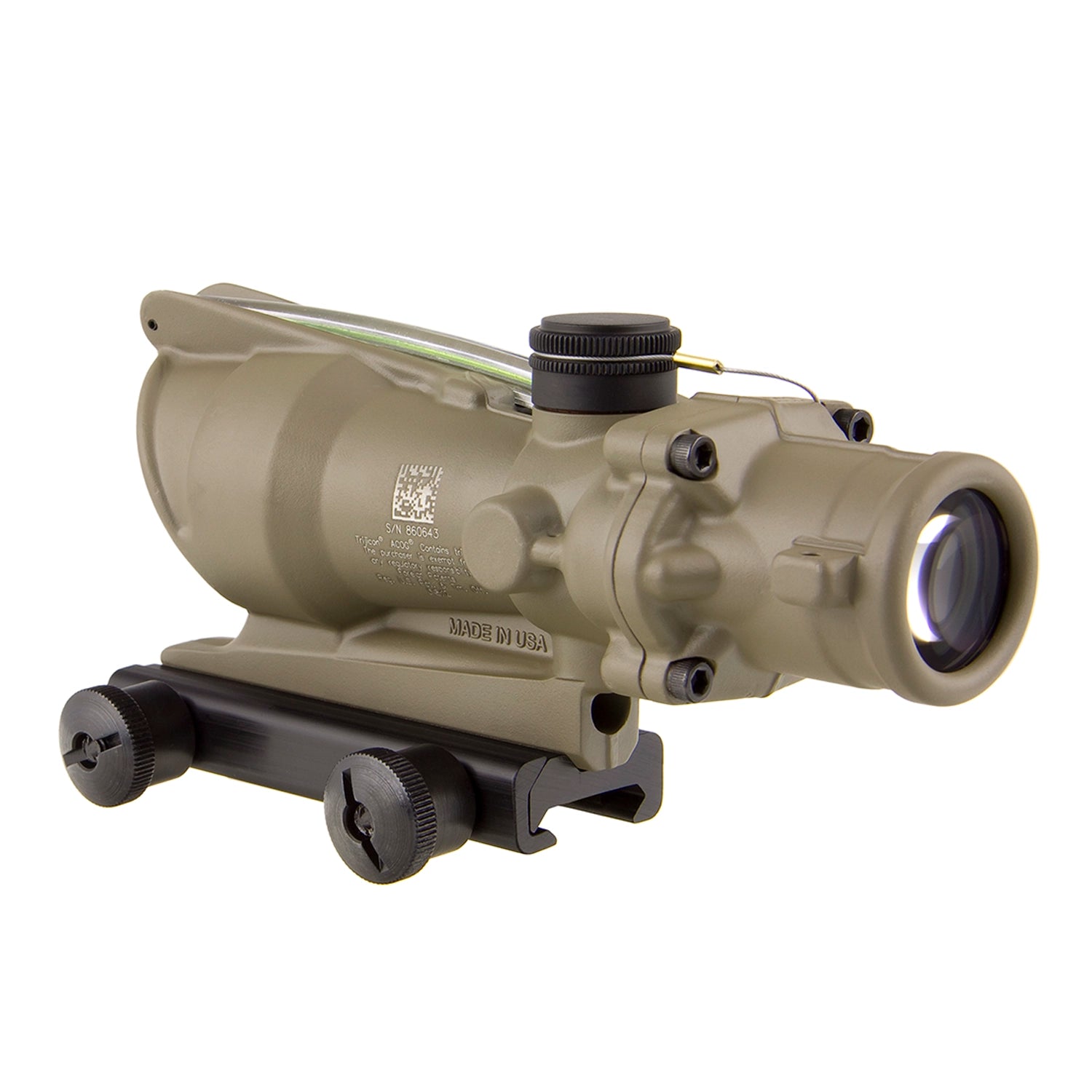

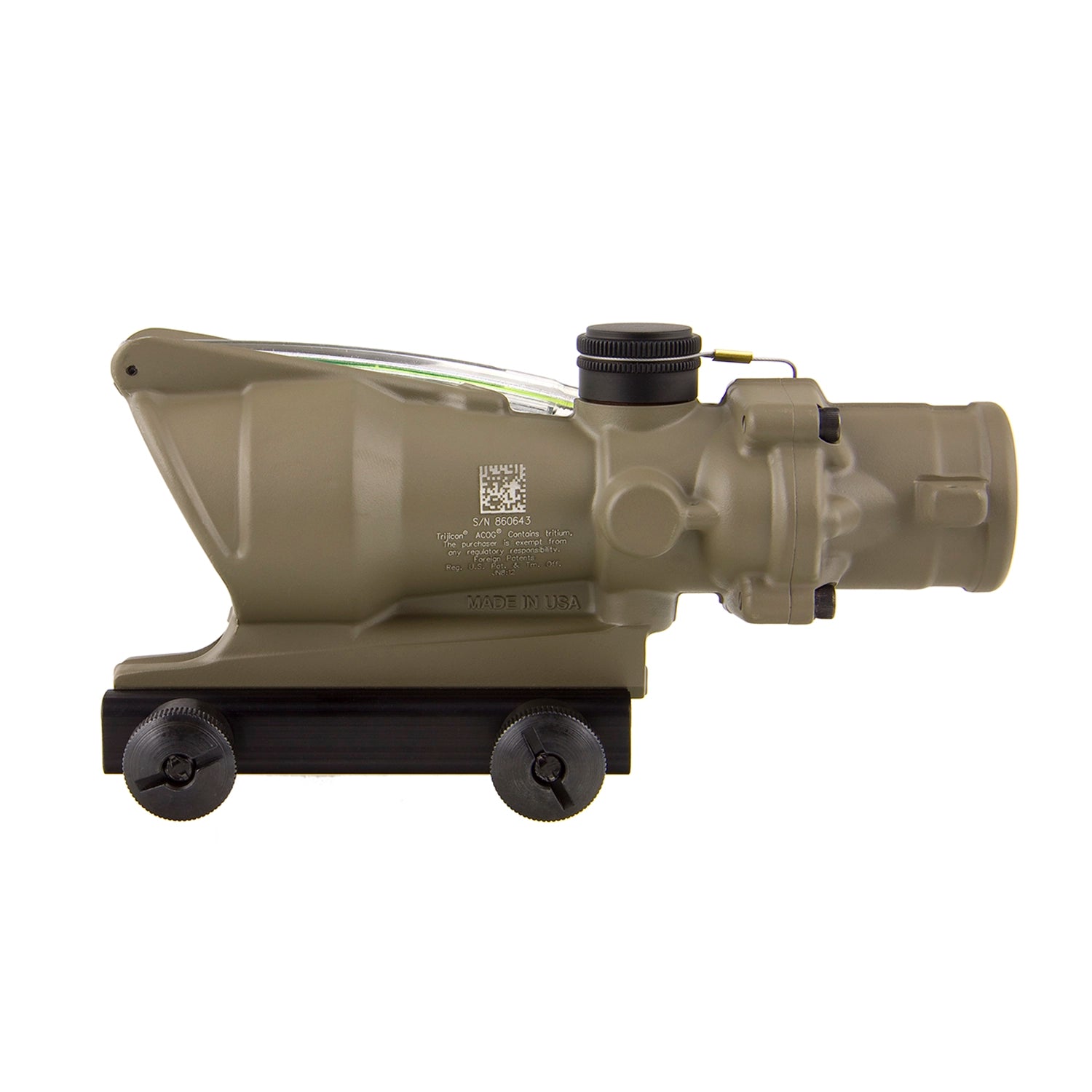

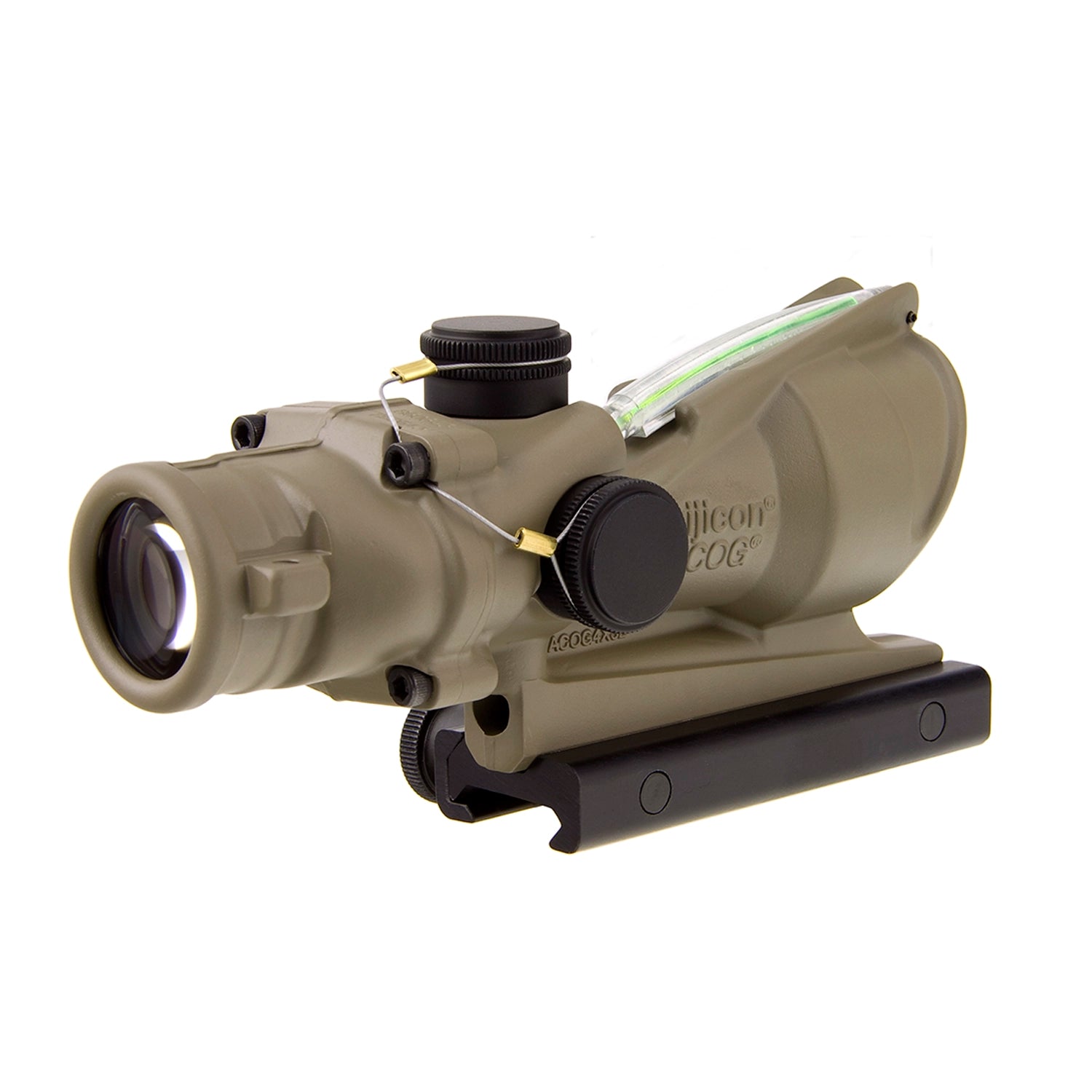

Green Crosshair Reticle, Thumbscrew Mount, FDE, Tritium / Fibre Optics Illuminated
The 4x32 ACOG scope provides a dual-illuminated reticle using fibre optics and tritium for a bright aiming point in any light condition. The ranging reticle allows for bullet drop compensation out to 600 meters without any manual adjustments.
Always On, Always Ready
Most ACOG® models are battery free, featuring a tritium/fibre optic illuminated reticle that automatically adjusts the brightness based on available light.
Take Control
Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.
Rugged, Reliable Housing Design
Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
“Both Eyes Open” Design
“Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.
Outstanding Clarity
The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
Exact Target Distances & Holds
Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
Combat Proven
No other magnified optic has been used more in combat than the ACOG.
Shock-Resistant
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
Waterproof
Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.
Length x Width x Height - 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm)
Weight - 14.9 oz. (422.41g)
Magnification - 4x
Objective Size - 32mm

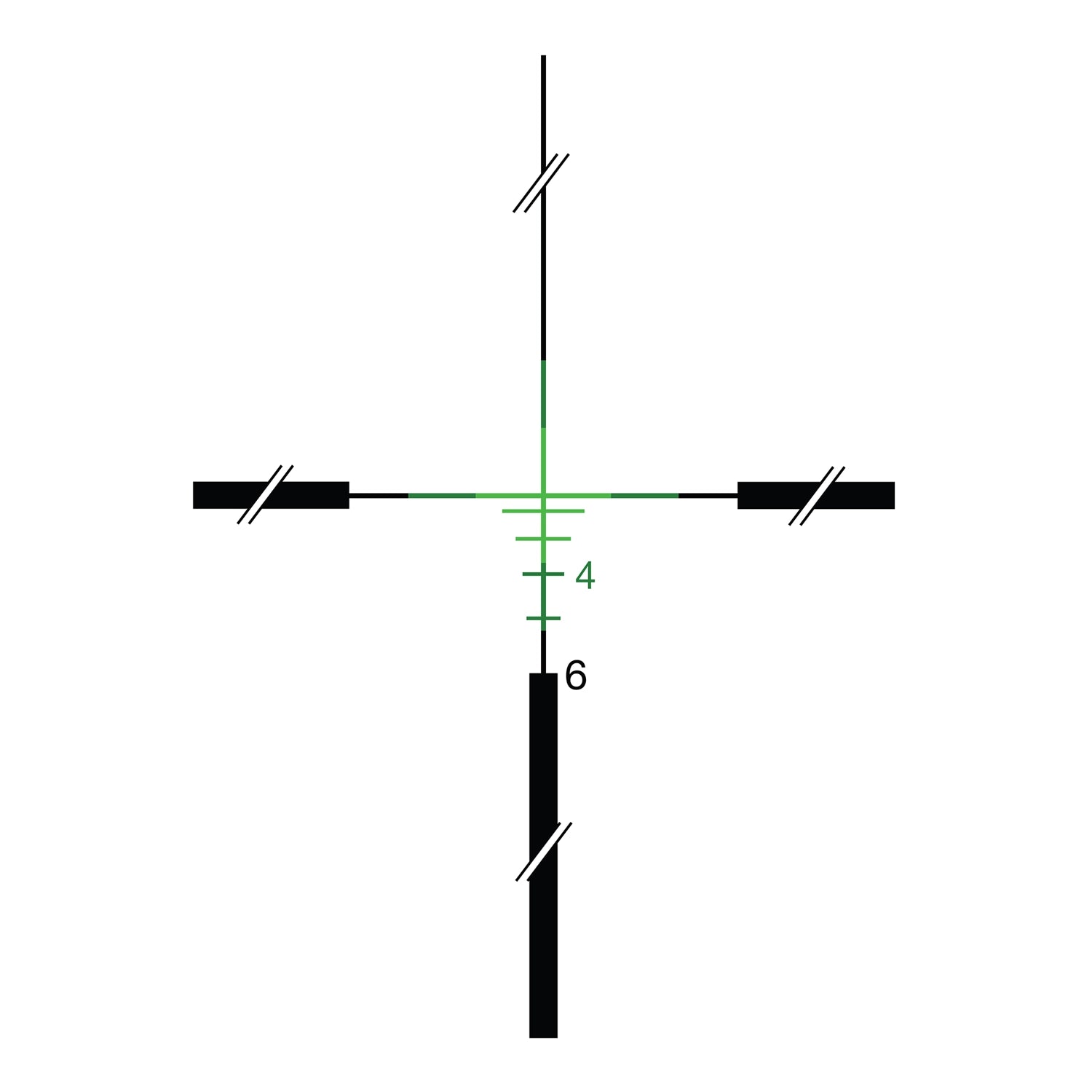

Reticle Pattern - Crosshair
Day Reticle Color - Green
Night Reticle Color - Green
Bullet Drop Compensating (BDC) - Yes
Caliber - .223 / 5.56
Bindon Aiming Concept™ (BAC) - Yes
Illumination Source - Fibre Optics & Tritium
Power Source - Fibre Optics & Tritium
Adjustment - 2 clicks per in. @100 yards
Eye Relief - 1.5 in. (38.1mm)
Exit Pupil - 0.32 in. (8.13mm)
Field of View (degrees) - 7°
Field of View (feet) - 36.8 ft. @ 100 yds. (12.27m @ 100m)
Mount - Flattop Thumbscrew Mount (TA51)
Housing Material - Forged Aluminium
Finish - FDE
Submersion Depth - -66 ft. (-20m)
