Red Crosshair Reticle , Thumbscrew Mount, Tritium / Fibre Optics Illuminated

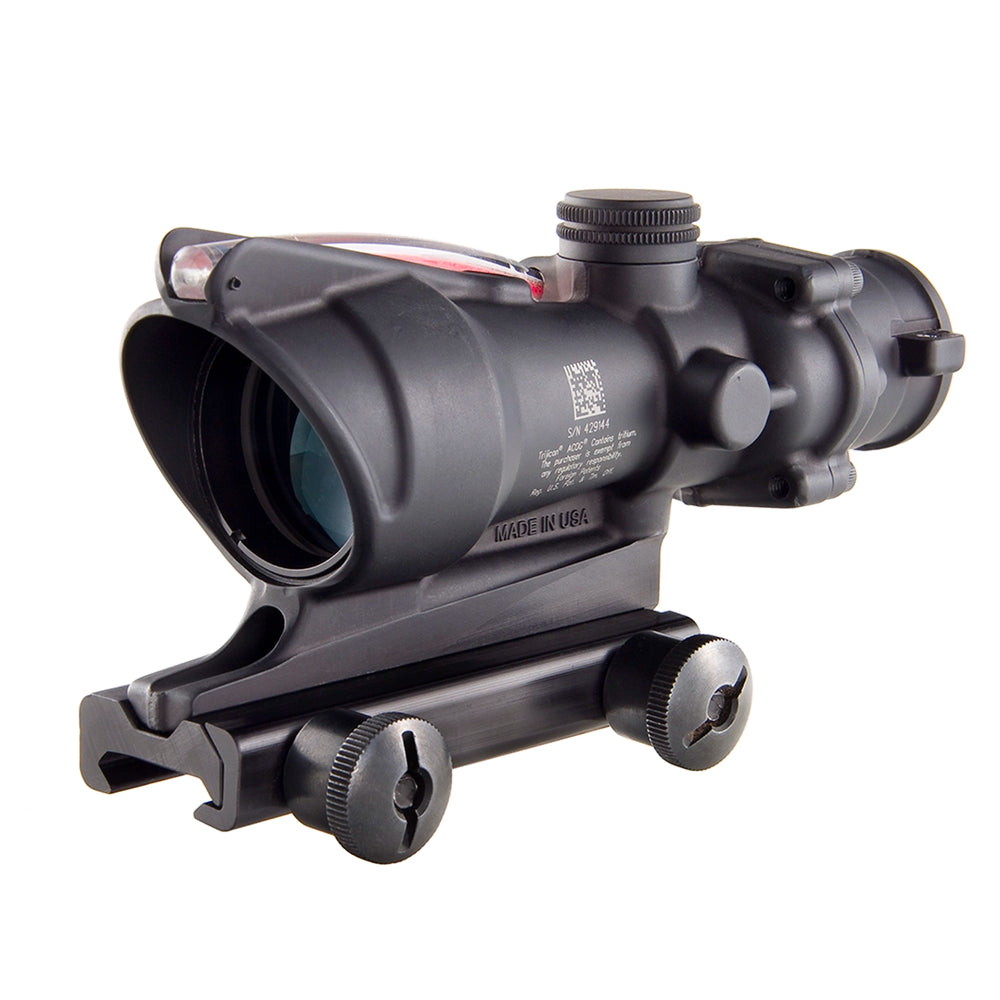

This 4x32 BAC ACOG scope provides a dual-illuminated reticle using fibre optics and tritium for a bright aiming point in any light condition. The 300 blackout reticle with merged aiming points has been optimized for simplicity and efficiency. It allows the user to instantly switch between supersonic and subsonic ammunition without having to re-zero the optic. The supersonic BDC (out to 600 yds.) has been merged with the subsonic BDC (out to 200 yds.) to provide one set of aiming points for both types of ammunition. The reticle drops are based on an average of commonly available off-the-shelf subsonic and supersonic ammunition from a 16" barrel. This BDC reticle is not limited to one or two specific bullets: a majority of commonly available ammunition will fall within the 2 MOA diamond aiming points. The 2 MOA diamonds offer a balance of speed and versatility based on the unique performance of the 300 Blackout caliber. The drops in MOA for each aiming point are provided for users who wish to develop their own handloads for use on firearms with a barrel of 16" or shorter, or for those who wish to deviate from the recommended zero distances.
Includes:
Thumbscrew Flattop Adapter (TA51)
4x32 Scopecoat (TA64)
LENSPEN (TA56)
Lanyard Assembly for Adjuster Caps (TA71E)
Trijicon Logo Sticker (PR15)
ACOG Manual
Warranty Card
Always On, Always Ready
Most ACOG® models are battery free, featuring a tritium/fibre optic illuminated reticle that automatically adjusts the brightness based on available light.
Take Control
Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.
Rugged, Reliable Housing Design
Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
“Both Eyes Open” Design
“Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.
Outstanding Clarity
The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
Exact Target Distances & Holds
Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
Combat Proven
No other magnified optic has been used more in combat than the ACOG.
Shock-Resistant
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
Waterproof
Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.
Length x Width x Height - 5.98 in x 2 in x 2.3 in - (151.89mm x 50.8mm x 58.42mm)
Weight - 14.9 oz. (422.41g)
Magnification - 4x
Objective Size - 32mm
Reticle Pattern - Crosshair
Day Reticle Color - Red
Night Reticle Color -Red
Bullet Drop Compensating (BDC) - Yes
Caliber - 300 BLK
Illumination Source - Fiber Optics & Tritium
Power Source - Fiber Optics & Tritium
Eye Relief - 1.5 in. (38.1mm)
Exit Pupil - 0.32 in. (8.13mm)
Field of View (degrees) - 7°
Field of View (feet) - 36.8 ft. @ 100 yds. (12.27m @ 100m)
Mount - Flattop Thumbscrew Mount (TA51)
Housing Material - Forged Aluminum
Finish - Matte Black
Submersion Depth - -66 ft. (-20m)
