Includes:
SkeetIRx
Quick Reference Guide
Product Manual
CR123 Battery
Soft Case

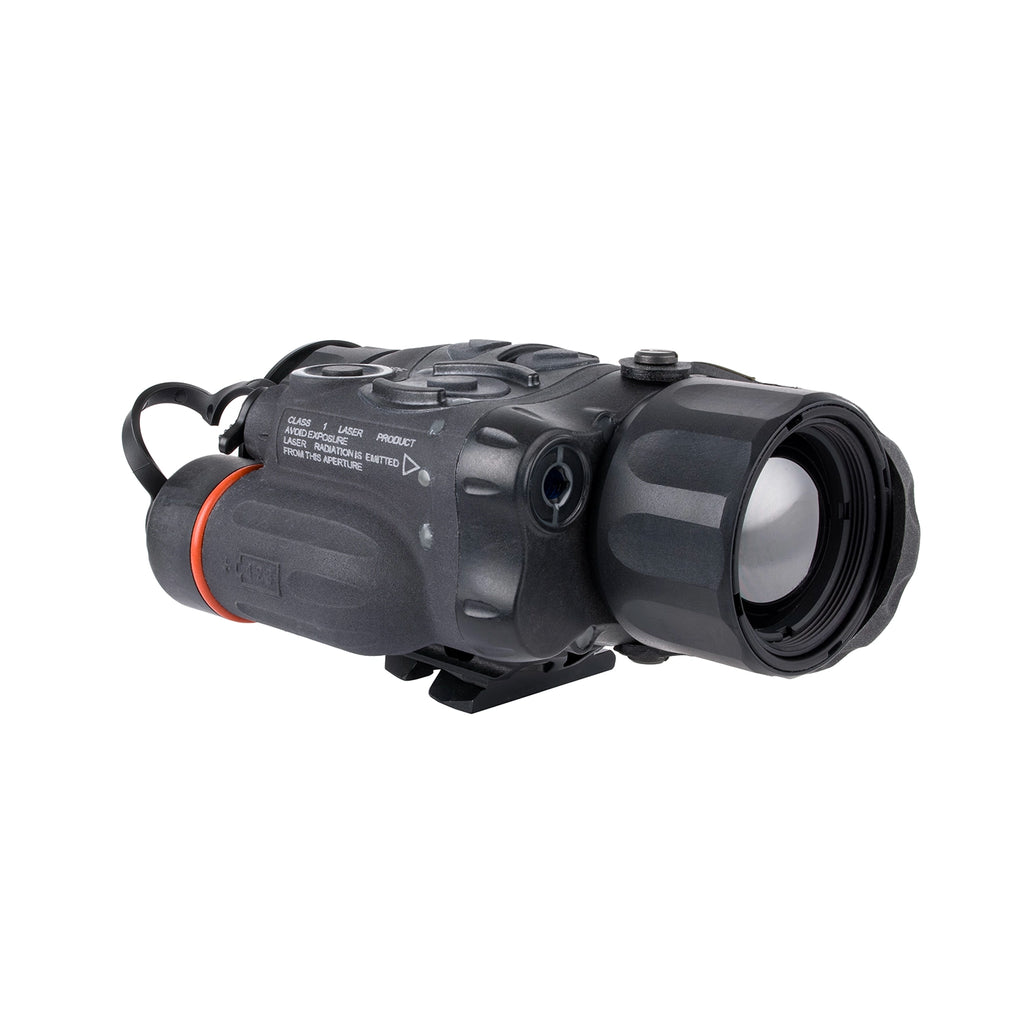

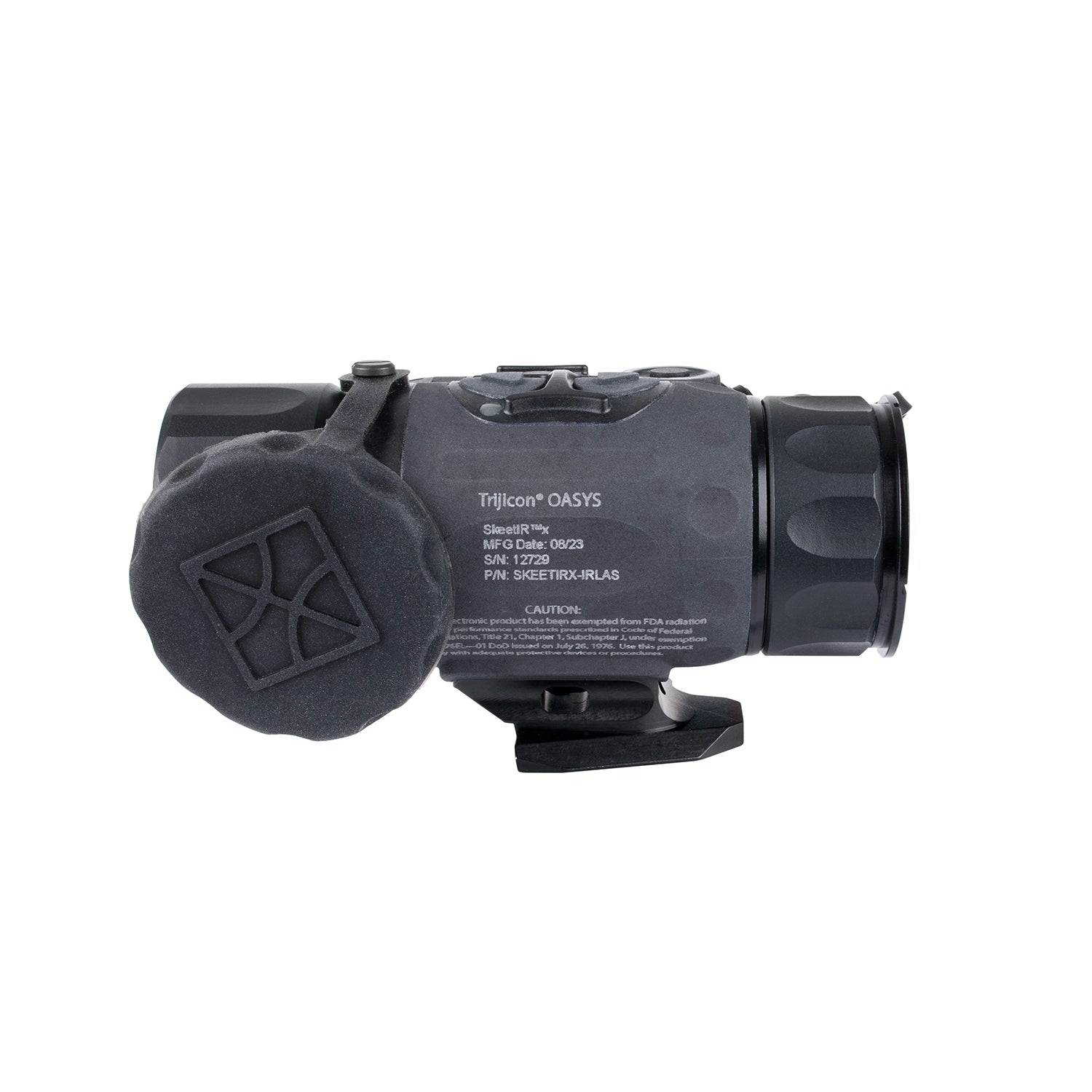

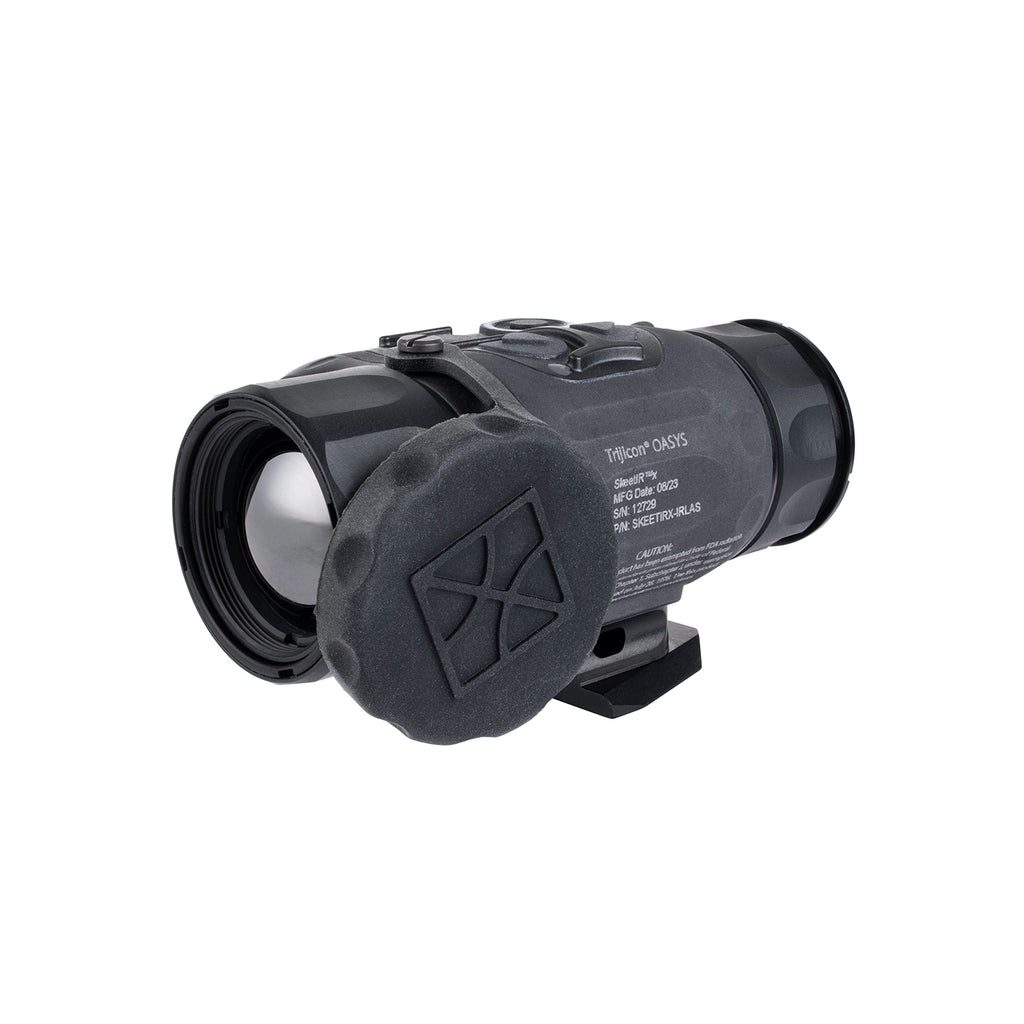

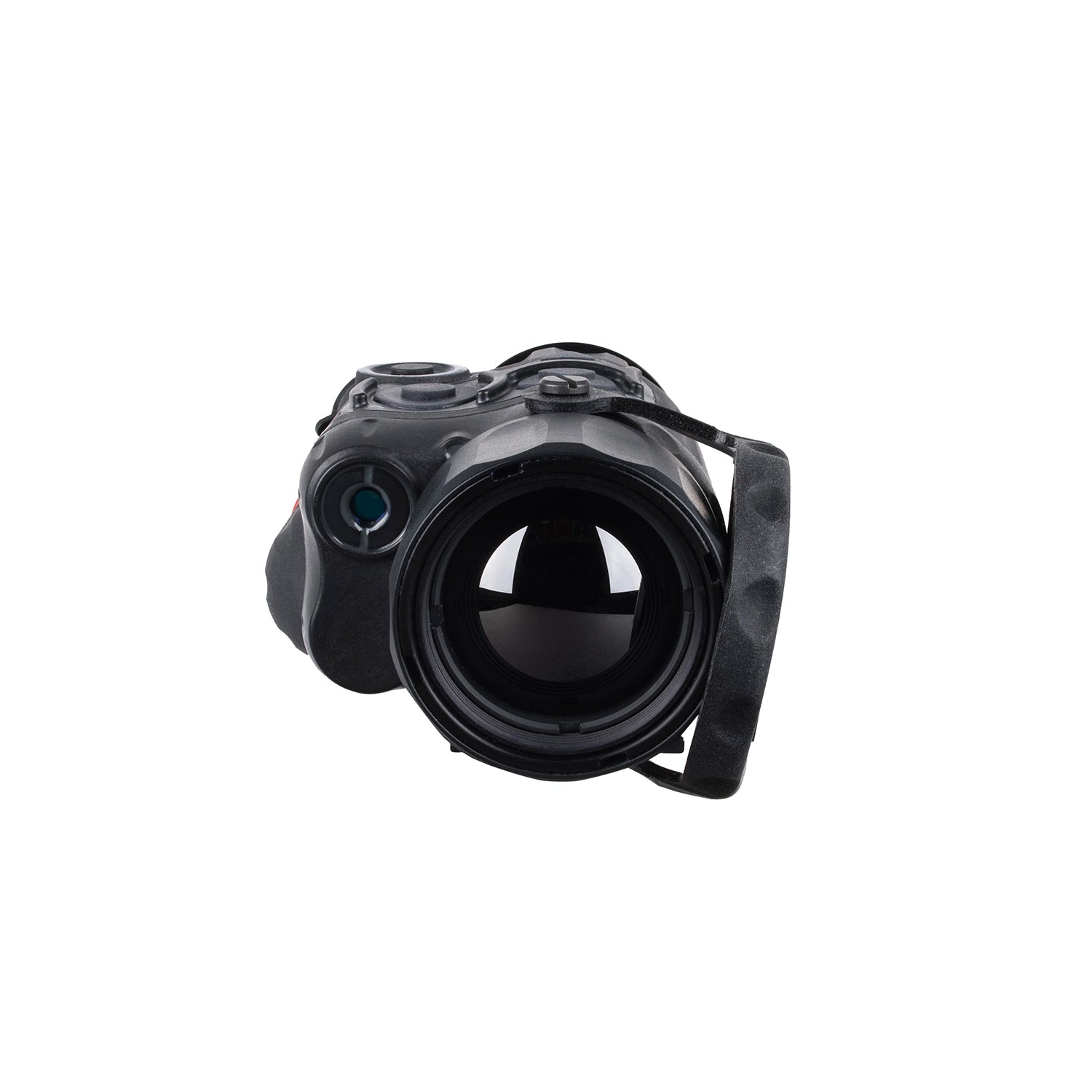

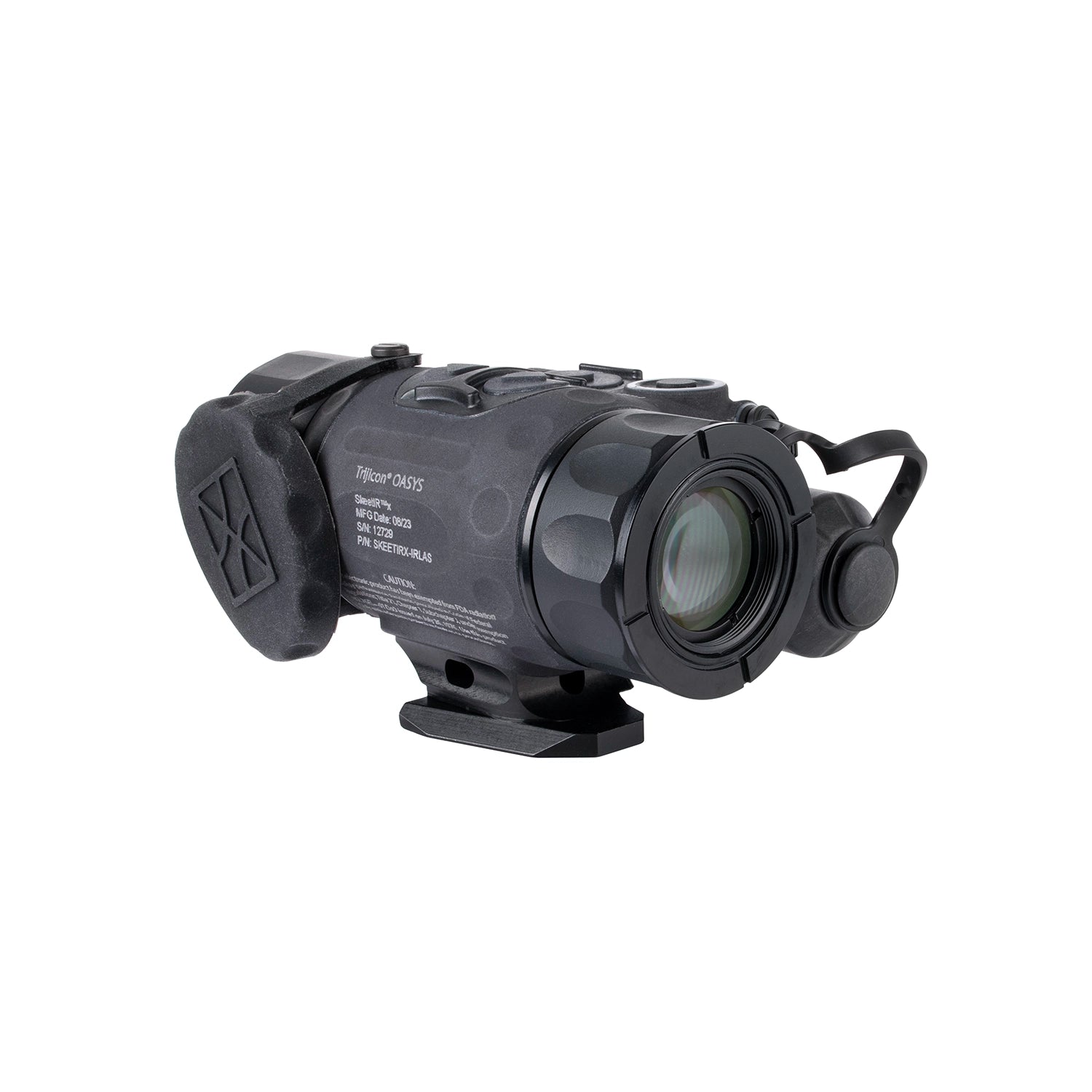

The Trijicon® SkeetIR™x is a miniature, multi-purpose thermal optic that is small enough to use as a helmet-mounted observation device, yet powerful enough to use as a clip-on or stand-alone thermal riflescope.
Applications
Covertly finding and locating objects without visible light
First responder, search and rescue, and law enforcement
Officer safety and protection
Hot spot and disturbed surface detection
Crime scene investigation
Seamless Transitions
Handheld, helmet-mounted, and weapon-mounted configurations enable a seamless transition from an observation to a targeting device to support a range of applications.
High-Resolution Thermal Imaging
Full, 640 resolution thermal sensors create a clear thermal image to detect and recognize targets in all environmental conditions—day or night.
Consistent, User-Friendly Interface
The intuitive interface and controls are consistent with all other Trijicon® OASYS products to help reduce training time and make it easy to use in any situation.
Specifications:
Length x Width x Height - 4.0 in x 2.4 in x 1.7 in (101.6mm x 60.96mm x 43.18mm)
Weight - 8.6 oz. (243.81g)
Power Source - 1 x CR123 or USB outlet
Battery Life - 2 hours @ 60Hz
Eye Relief - .7874 in. (20mm)
Field of View (degrees) - 28.1°
Submersion Depth - 66 ft. (20m)
Operating Temperature - -40 F to 140F (-40c to 60c)
Digital Zoom - 0.5X and 2X
Sensor Resolution - 640x480
Sensor Pixel Pitch - 17 µm
Frame Rate - 30 Hz / 60 Hz
