Red Crosshair Reticle, Thumbscrew Mount, Automatic LED 3.25 MOA Red Dot RMR® Type 2

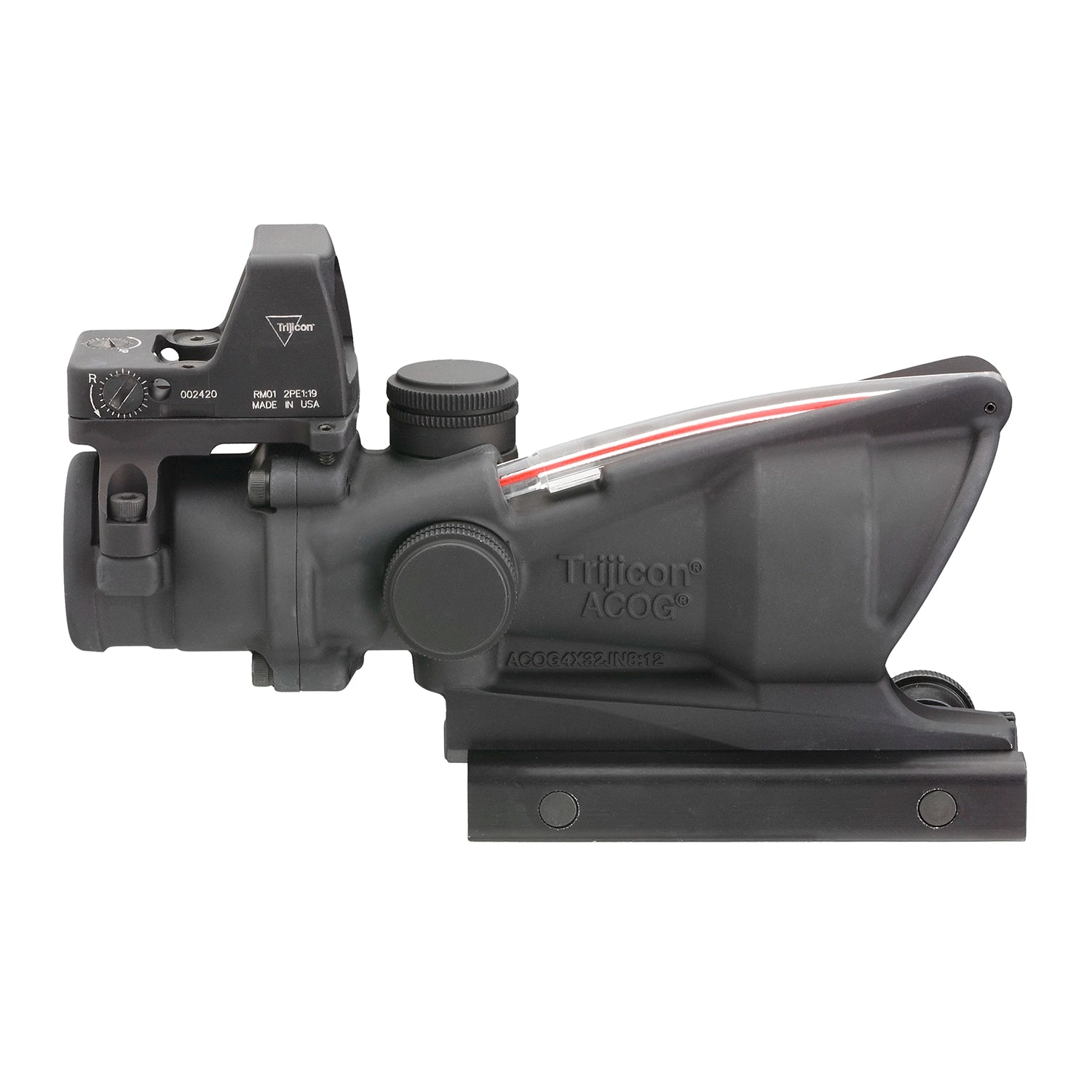

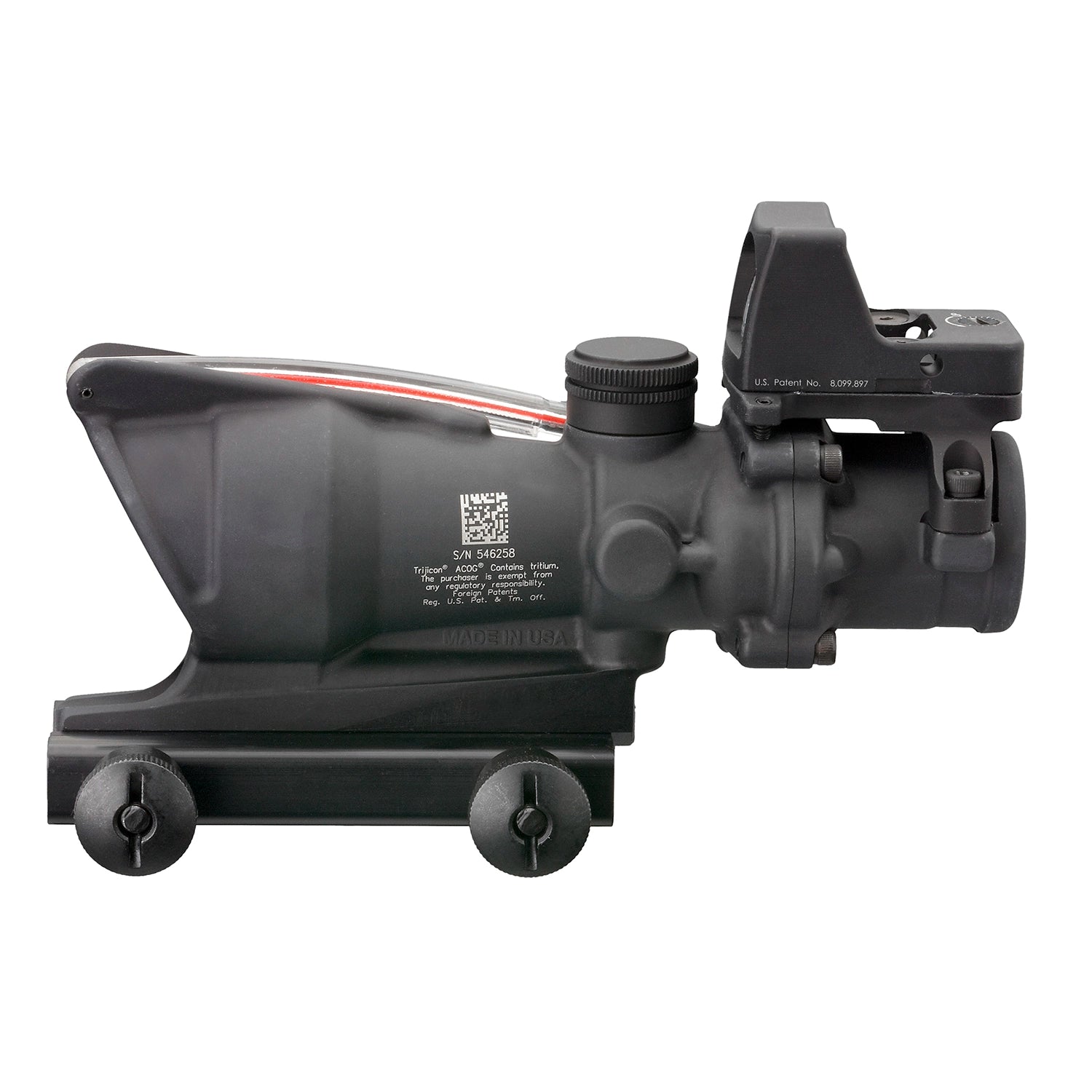

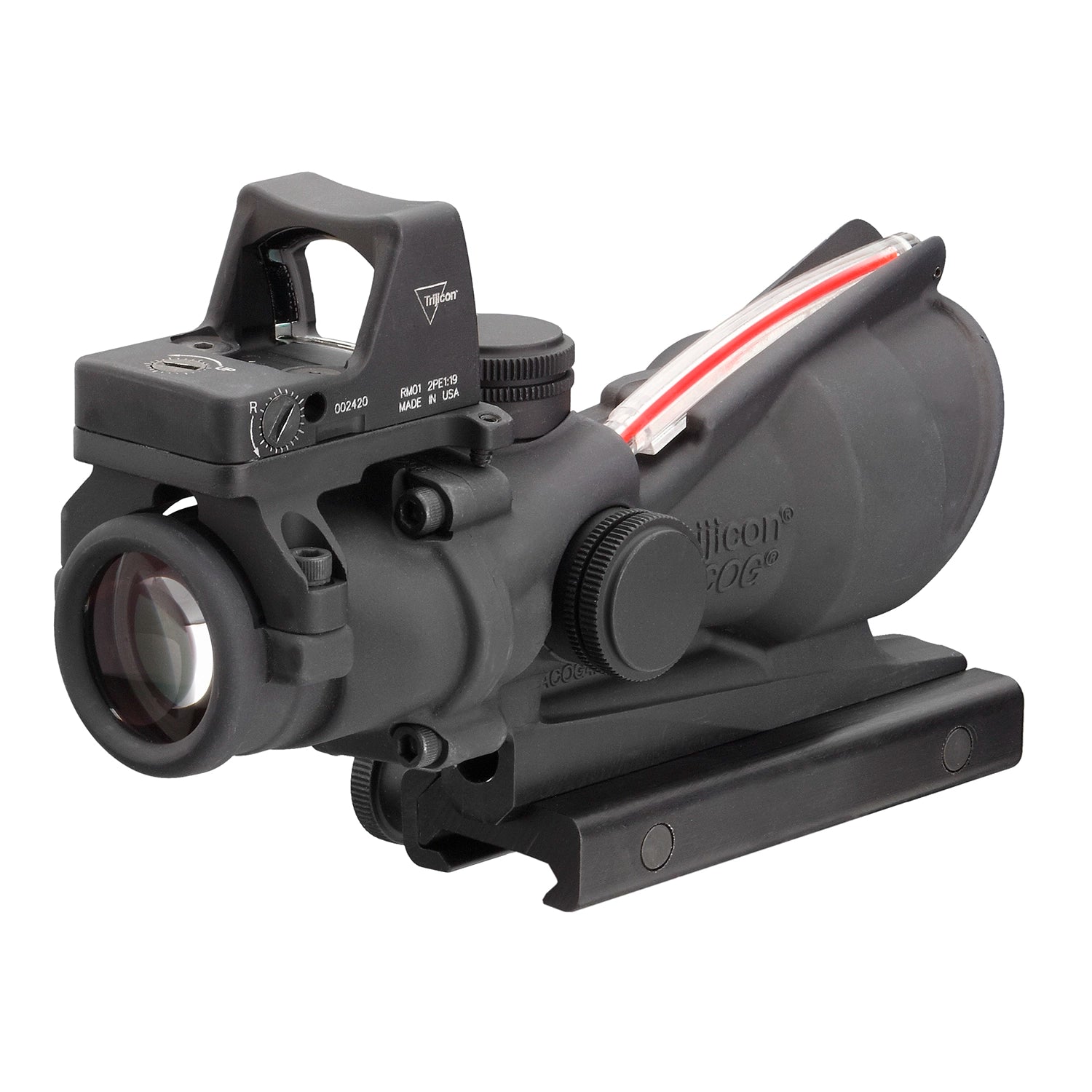

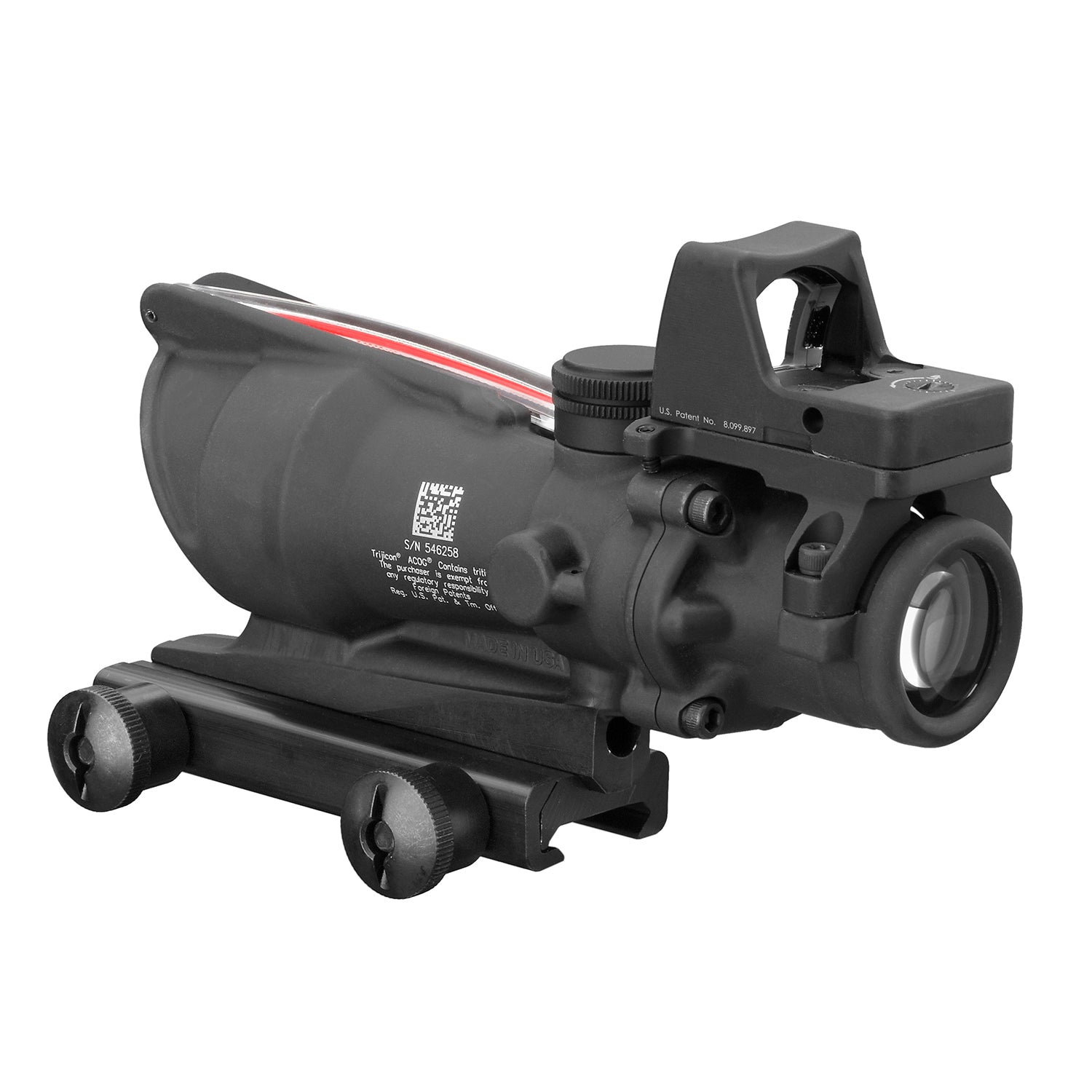

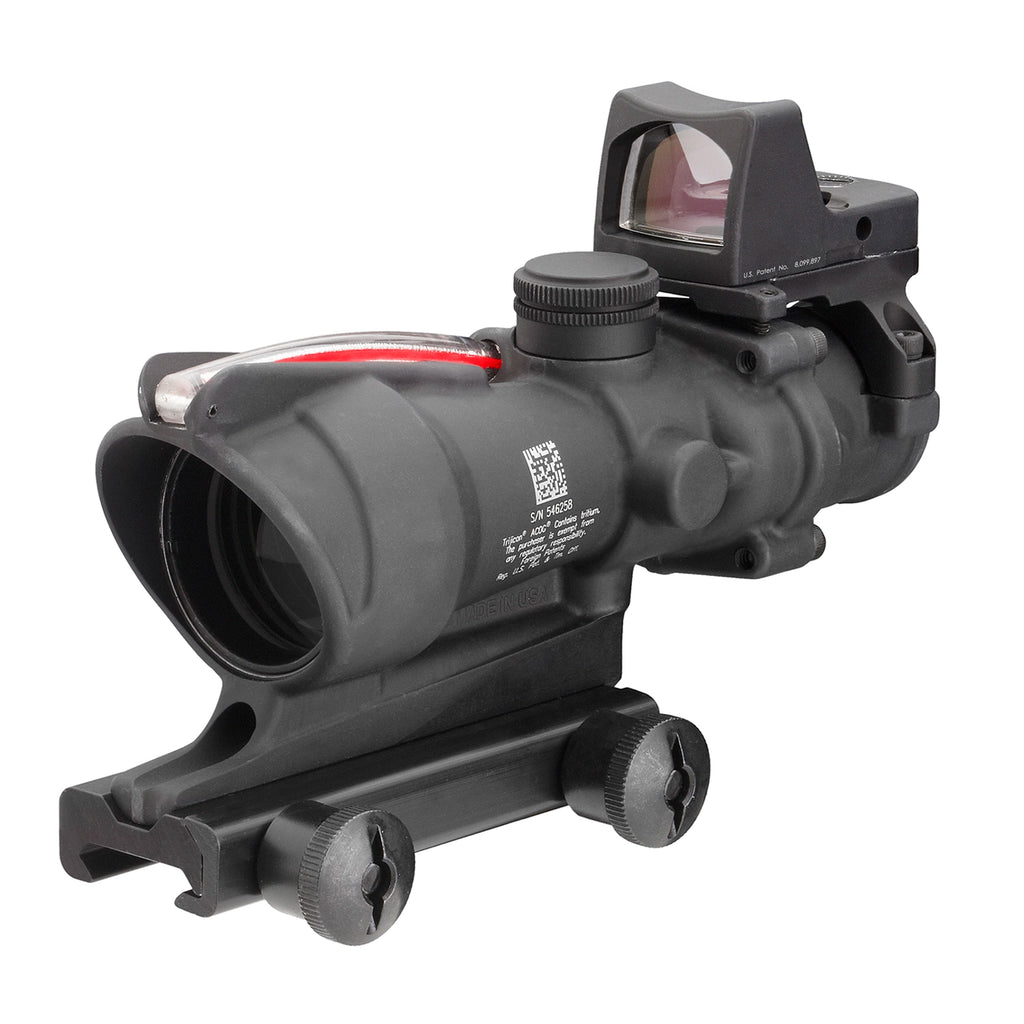

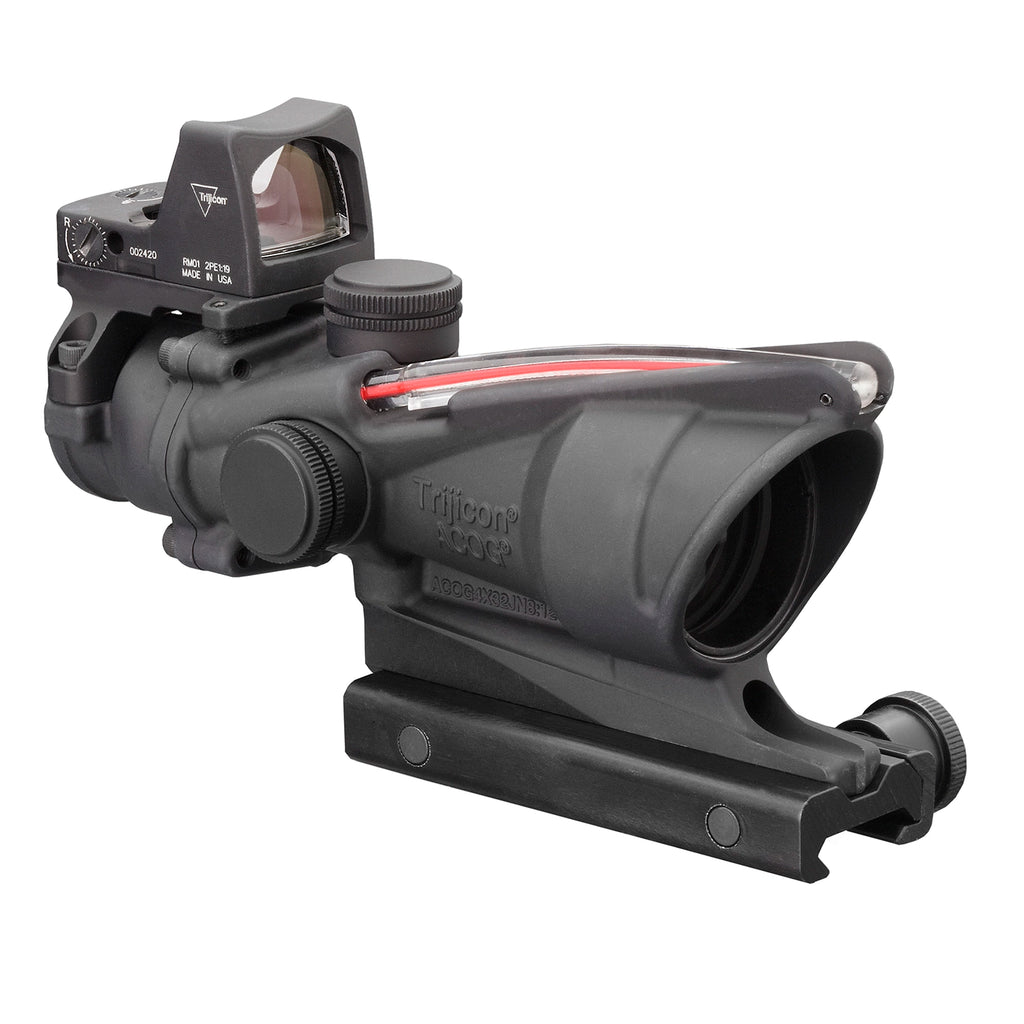

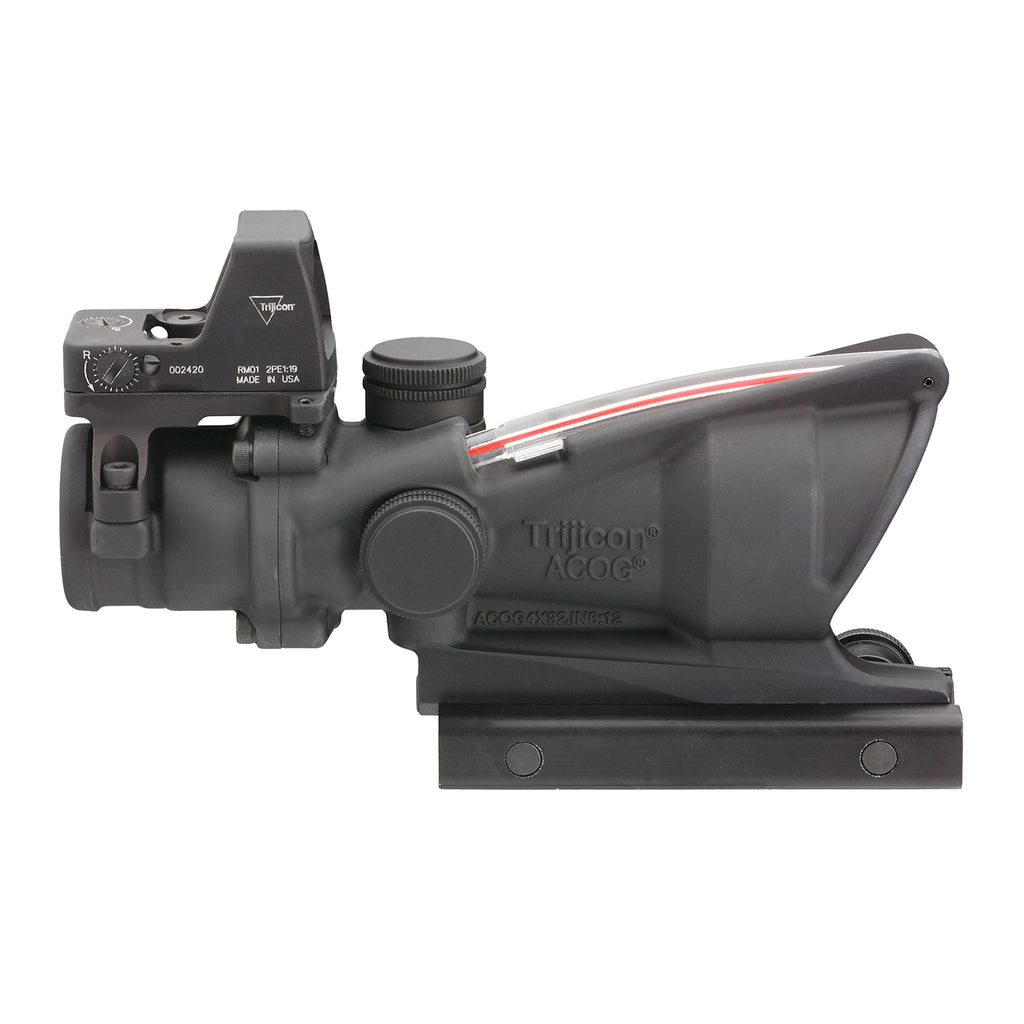

Adapted from the battlefields, US Forces have begun improving this proven Trijicon ACOG scope by adding a small red dot sight on top for close encounter missions. Trijicon has now created a similar model for the public, the TA31-C-100550. The main Trijicon scope provides a dual-illuminated reticle using fibre optics and tritium for bright aiming point in any light condition. The ranging reticle allows for bullet drop compensation out to 600 meters without any manual adjustments. A Trijicon RMR Type 2 sits on top with a 3.25 MOA aiming dot.
Includes:
3.25 MOA RMR Type 2
Thumbscrew Flattop Adapter (TA51)
LENSPEN (TA56)
Lanyard Assembly for Adjuster Caps (TA71E)
Trijicon Logo Sticker (PR15)
ACOG BAC Manual
Warranty Card
Always On, Always Ready
Most ACOG® models are battery free, featuring a tritium/fibre optic illuminated reticle that automatically adjusts the brightness based on available light.
Take Control
Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.
Rugged, Reliable Housing Design
Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.
“Both Eyes Open” Design
“Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.
Outstanding Clarity
The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.
Exact Target Distances & Holds
Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.
Combat Proven
No other magnified optic has been used more in combat than the ACOG.
Shock-Resistant
Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.
Waterproof
Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.
Length x Width x Height - 5.98 in x 2 in x 2.3 in (151.89mm x 50.8mm x 58.42mm)
Weight -17 oz. (481.94g)
Magnification - 4x
Objective Size - 32mm

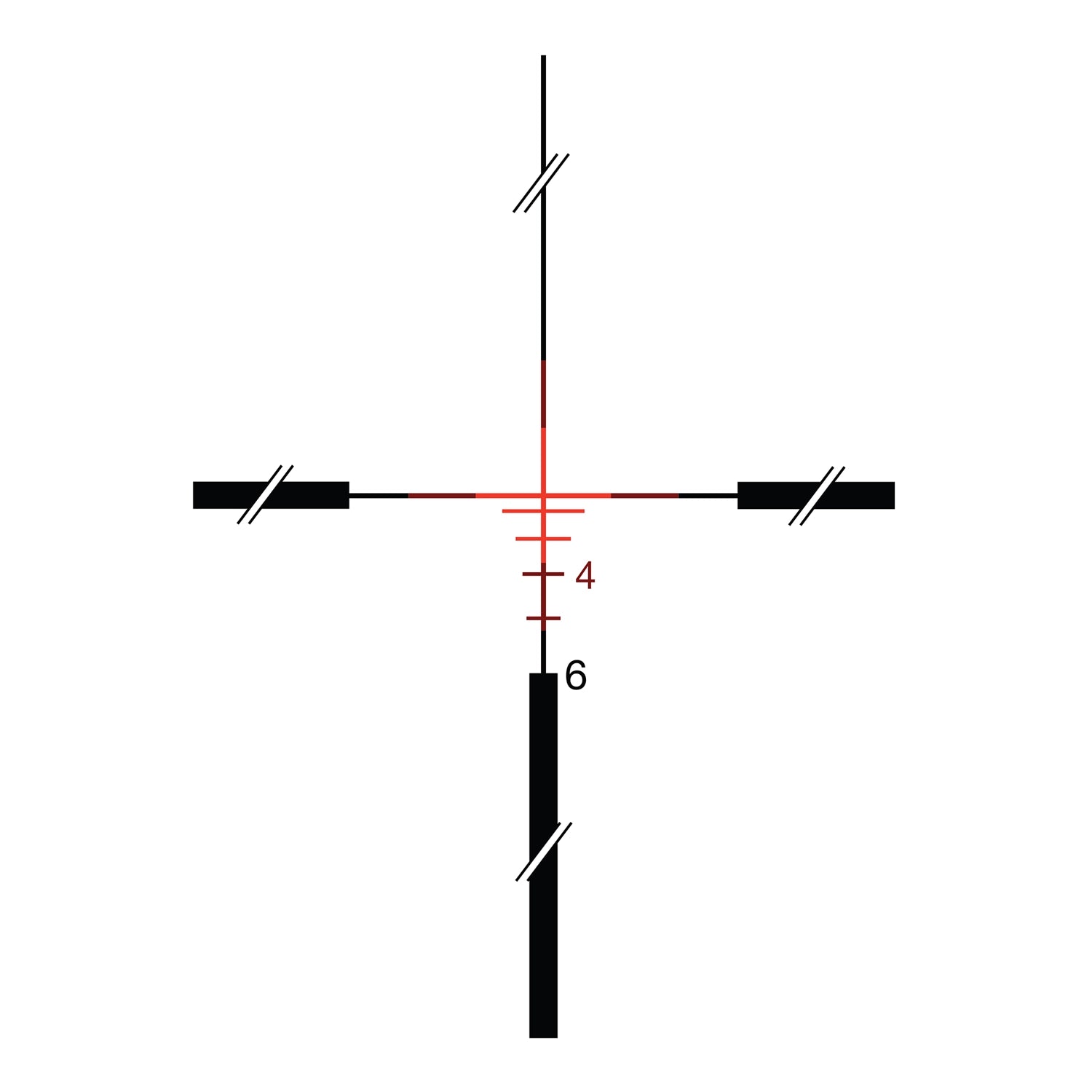

Reticle Pattern - Crosshair
Day Reticle Color - Red
Night Reticle Color - Red
Bullet Drop Compensating (BDC) - Yes
Caliber - 0.223
Bindon Aiming Concept™ (BAC) - Yes
Illumination Source - Fibre Optics & Tritium
Power Source - Fibre Optics & Tritium
Eye Relief - 1.5 in. (38.1mm)
Exit Pupil - 0.32 in. (8.13mm)
Field of View (degrees) - 7°
Field of View (feet) - 36.8 ft. @ 100 yds. (12.27m @ 100m)
Mount - Flattop Thumbscrew Mount (TA51)
Housing Material - Forged Aluminium
Finish - Matte Black
Submersion Depth - -66 ft. (-20m)
